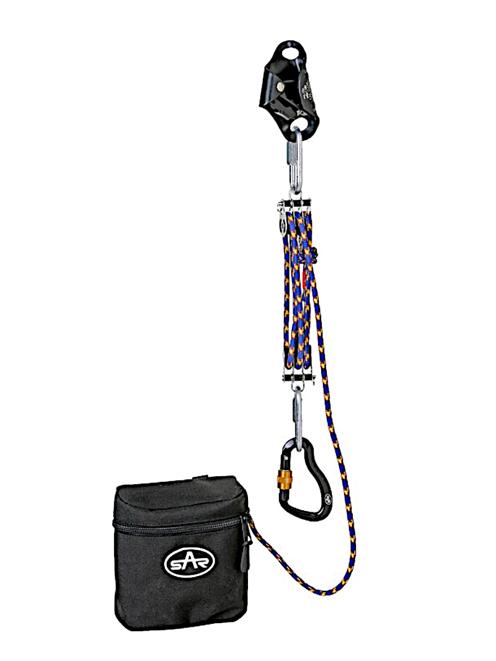

SAR 6 to 1 Lightweight Casualty Pulley System CPS

Code: P0001
£204.47
(inc. VAT)

Sar 6 to 1 Casualty Pulley System (CPS)

The 6 to 1 Casualty Pulley System (CPS) is designed to lift casualties onto a stretcher or transfer their load from lanyards, slings or rope to the rescuer or rescue system. It's simple lightweight design allows a rescuer to de-weight (remove the weight from) a casualty so that their lanyards can be removed from a structure or a descending / ascending device can be removed from a rope when being rescued.

Full description

Description

Sar 6 to 1 Casualty Pulley System (CPS)

The SAR Casualty Pulley System has been used over many years to lift casualties onto a stretcher or transfer their load from safety lines, slings or rope to the rescuer or rescue system.

It first came to light watching the UK Holyhead Coastguard cliff rescue team performing a rescue demonstration at a Mountain Rescue Conference for England and Wales approx. 20 years ago. It was a neat simple idea made from two small specially made twin pulleys that packed into a small bag.

From this I found a ready made system called the Haultrack, used for lifting out car engines. It did have its failures as it wore out very quickly, sometimes jamming and used on the cliff the brake was out of reach for the user and difficult to operate. This prompted me to design the Casualty Pulley System using small marine pulleys and 6mm prussic cord. When tested with the cord in its locking cleat it held at 9kN and the only deformation was on the axles on both pulley sets.

Key Features

  • Max. Working Length: 2M.
  • Pulley working ratio: 6-1.
  • W.L.L. 150kg Safety factor 6-1.
  • Complete with Pouch - (Size 16cm x 16cm x 7cm).
  • Fits onto harness waist belt and comes with its own waist strap.





Manufacturer's Downloads



Specification

Pulley

Pulley Type
Pulley Systems
Pulleys Cheek
Fixed Cheek
Pulley Wheel Material
Plastic
Pulley Rating (Breaking Load) kN
0-15kN
Pulley Efficiency
Bushings
Rescue Kits
Casualty Pulley System

General

Industrial or Sport Use
Industrial
Conformity
CE EN12278
Weight (g)
812g

Related video

SAR 6 to 1 Casualty Pulley System (CPS)
