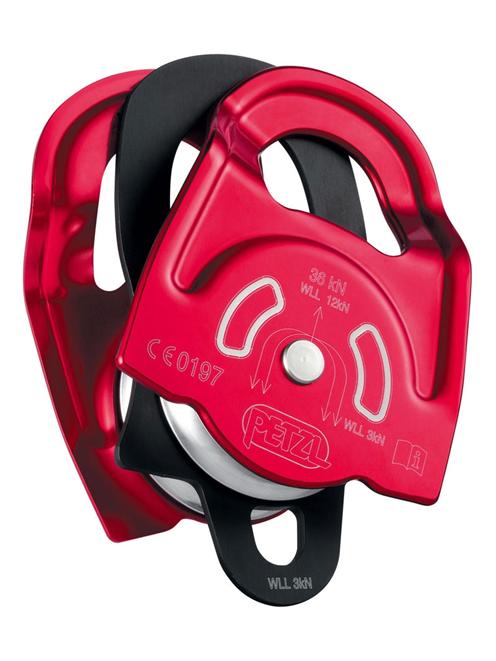

Petzl Twin Double Pulley

Code: P65A
£105.60
(inc. VAT)

Petzl Twin Double Pulley

The Petzl Twin is a high strength, very high efficiency prusik minding double pulley designed for technical haul systems with progress capture.

Full description

Description

Petzl Twin Double Pulley


Key Features

  • Very high efficiency – 97%
  • Very large diameter 51mm sheave mounted on sealed ball bearings
  • Swing cheeks
  • Large attachment holes accept up to 3 karabiners
  • Lower attachment becket
  • Strength – Pulley – 12kN Working Load Limit (WLL)
  • Strength – Becket – 3kN Working Load Limit (WLL)
  • Breaking Load (MBS) Pulley - 36kN
  • Breaking Load (MBS) becket – 19.5kN


Rope compatibility

Rope diameter - 7mm-13mm


Accessories

Petzl Minder
Petzl Basic
Petzl Rescucender


Cleaning

Wash and rinse in clean water using pure soap
+30°C / 86°F (max.)

Drying

Dry in a well-ventilated place away from direct sources of heat or sunlight.
+30°C / 86°F (max.)




Manufacturer's Downloads



Specification

Pulley

Pulley Type
Double / Twin
Pulleys Cheek
Swing Cheek
Pulleys Additional Features
Prussik Minding
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
0-15kN
Pulley Efficiency
Bearing / High Efficiency
Sheave Diameter (mm)
51mm
Pulley Efficiency
97%
Minimum Rope Diameter (mm)
7mm
Maximum Rope Diameter (mm)
13mm
Working Load Limit (kN)
12kN

General

Industrial or Sport Use
Industrial
Conformity
NFPA 1983 General Use
CE EN12278
Weight (g)
450g
Operating Temperature from
-40°C / -40°F
Operating Temperature to
+80°C / +176°F
Lifetime
Unlimited
Guarantee
3 Years
