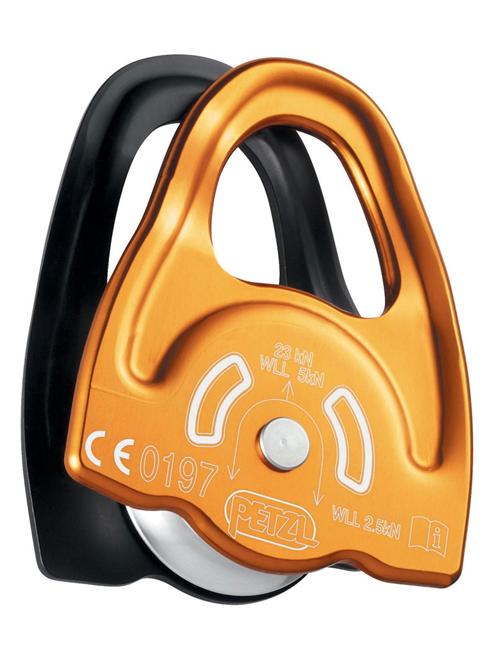

Petzl Mini Swing Cheek Pulley

Code: P59A
£43.48
(inc. VAT)

Petzl Mini Swing Cheek Pulley

Petzl Mini lightweight prusik pulley. The lightweight MINI can handle big loads, but is small enough to go almost anywhere or be carried on the harness.

Full description

Description

Petzl Mini Swing Cheek Pulley

Petzl Mini lightweight prusik pulley. The lightweight MINI can handle big loads, but is small enough to go almost anywhere or be carried on the harness.

  • Special side plates designed for use with a Prusik friction hitch in progress capture systems.
  • Sheave mounted on sealed ball bearings for excellent efficiency.
  • Compact and lightweight.





Manufacturer's Downloads



Specification

Pulley

Pulley Type
Single
Pulleys Cheek
Swing Cheek
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
21-30kN
Pulley Efficiency
Bearing / High Efficiency
Sheave Diameter (mm)
25mm
Pulley Efficiency
91%
Minimum Rope Diameter (mm)
7mm
Maximum Rope Diameter (mm)
11mm
Working Load Limit (kN)
5kN
Max Breaking Strength (kN)
23kN

General

Industrial or Sport Use
Industrial
Material
Aluminium Body, Aluminium Sheave,
Conformity
UIAA
NFPA 1983 Technical Use
CE EN12278
Weight (g)
80g
