Petzl Rollclip A Pulley Karabiner Triact Lock

Code: P74TL
£45.60
(inc. VAT)

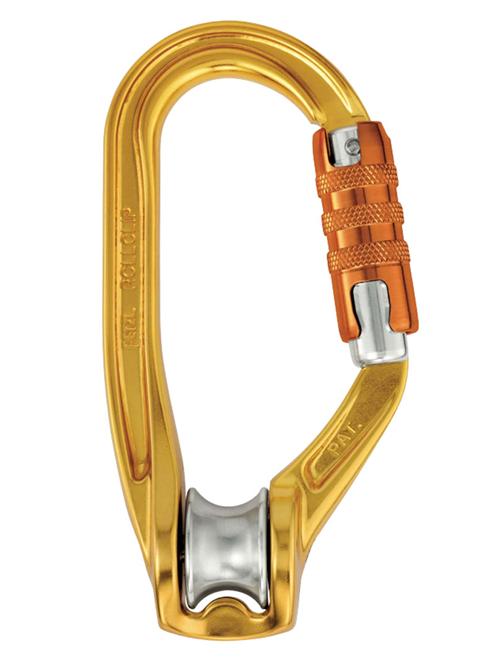

Petzl Rollclip A Triact Lock Pulley Karabiner with integrated pulley wheel

The Petzl Rollclip Triact karabiner has an integrated pulley wheel which helps reduce friction / rope drag. With a triple action gate it offers the highest level of safety. Ideal for use in situations where a moving rope needs to be deviated but space is limited or weight of equipment is an issue.

Full description

Description

Petzl Rollclip A Triact Lock Pulley Karabiner with integrated pulley wheel

The new Petzl Triact (Triple Action - lift, twist and pull to open) Rollclip karabiner incorporates a mini pulley which helps reduce friction / rope drag when a rope runs over it. By blending the pulley wheel with the karabiner it reduces the height lost which can be important when used in rescue (compare the height lost when using a seperate karabiner and pulley). Also available with a non-locking snap gate.

Compatible with the captiv connector positioning bar. Please click here for the Captiv

 Petzl Rollclip Pulley Karabiner Diagram





Manufacturer's Downloads



Specification

Single Pulley Rollclip

Pulley Type
Single
Pulleys Additional Features
Rollerclip / Revolver
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
16-20kN
Sheave Diameter (mm)
18mm
Pulley Efficiency
85%
Maximum Rope Diameter (mm)
13mm
Minimum Rope Diameter (mm)
7mm
Gate Type
Triple Action (Locksafe)
Gate Opening (mm)
22mm
Open Gate Strength (kN)
7kN
Major Axis Strength (kN)
20kN
Minor Axis Strength (kN)
8kN
Working Load Limit (kN)
4kN

General

Industrial or Sport Use
Industrial
Material
Aluminium Body
Conformity
CE EN362
CE EN12275
CE EN12278
EAC
Weight (g)
115g
