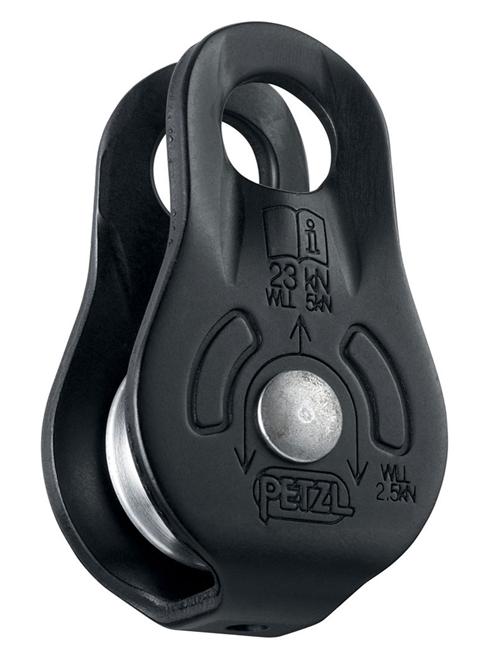

Petzl Fixe Black Pulley

Code: P05WN
£22.44
(inc. VAT)

Petzl Fixe Black Pulley

Pulley with fixed side-plates - Suitable for hauling systems and as a directional pulley.

Full description

Description

Petzl Fixe Black Pulley



Key Features

  • Fixed side plates for quick and easy installation
  • 21mm diameter sheave mounted on self-lubricating bushings
  • Strength – 5kN Working Load Limit (WLL)
  • Efficiency – 71%
  • Breaking Load (MBS): 23kN



Rope Compatibility

  • 7mm to 13mm



Different versions



Accessories



Cleaning

Wash and rinse in clean water using pure soap.

+30°C / 86°F (max.)

Drying

Dry in a well-ventilated place away from direct sources of heat or sunlight.

+30°C / 86°F (max.)





Manufacturer's Downloads



Specification

Single Pulley

Pulley Type
Single
Pulleys Cheek
Fixed Cheek
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
21-30kN
Pulley Efficiency
Bushings
Sheave Diameter (mm)
21mm
Pulley Efficiency
71%
Minimum Rope Diameter (mm)
7mm
Maximum Rope Diameter (mm)
13mm
Working Load Limit (kN)
5kN

General

Industrial or Sport Use
Industrial
Material
Aluminium Body, Aluminium Sheave,
Conformity
CE EN12278
Weight (g)
90g
Operating Temperature from
-40°C / -40°F
Operating Temperature to
+80°C / +176°F
Lifetime
Unlimited
Guarantee
3 years
