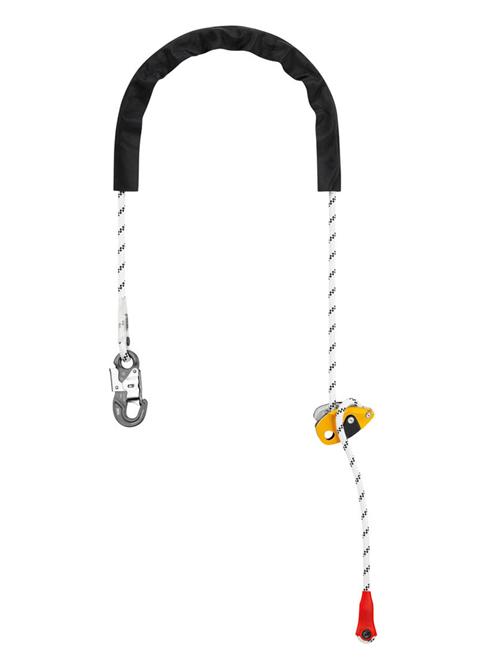

Petzl Grillon Work Positioning Anchor With Hook

Code:
From £146.40
(inc. VAT)

Petzl Grillon Work Positioning Anchor With Hook

The Petzl adjustable Grillon hook is used to make work positioning systems, to complement a fall-arrest system. Its length can be very easily and precisely adjusted as necessary for comfortable positioning at the work station. Its HOOK connector is ideal for using the lanyard in double mode on the harness side attachment points. GRILLON HOOK is available in four lengths (2, 3, 4 and 5 m) and is certified to European and Russian standards.

Full description

Description

Petzl Grillon Work Positioning Anchor With Hook

The Petzl Grillon Lanyard is an adjustable work positioning / work restraint lanyard used to secure a technician to a anchor point or structure. It is designed to limit movement or to allow hands-free work while in a position of work. The lanyard rope can be pulled through the device to pull you closer to the area of work. The longer lengths can also be used as a temporary horizontal lifeline.

Can be used in two ways:

Single mode:

    Attached (device end) to the centre waist (ventral) attachment point of the harness (rope end to an anchor), for use as an adjustable work positioning or restraint lanyard (user can be in suspension).
    The distance from the anchor can be adjusted by operating the handle while holding the free end of the lanyard.

Double mode:

    Clipped to each side D (lateral) attachment point of the harness with the rope wrapped round a structure, designed so some of the users weight is distributed onto the harness waist belt when the user has weight on their feet, with the aim of keeping the user close to their position of work.
    The distance from the work position can be adjusted by pressing on the pivoting cam to let rope out (to move further from the work position).

Available in several lengths, with the rope end length marking colour coded for easy identification.

Note: Requires two connectors (unless opting for the Grillon Hook which has a double action snap hook sewn into the rope end - this version just requires a connector for the device end).

Tech Tip: Use a mule knot behind the Grillon to lock the device in one place.

Key Features

  • Easy to use:
    Fine adjustment system allows length to be precisely adjusted for comfortable positioning at a work station.
    Used in double mode (on the harness side attachment points) when the user works with weight on his feet. This type of attachment gives better load distribution on the belt. Length is adjusted by pressing on the pivoting cam.
  • Sewn terminations on both ends with plastic sheath to keep the connector in position and protect the rope from abrasion.
  • Removable protective sheath protects the rope from abrasive surfaces and allows smooth rope glide.
  • Comes with a hook connector, ideal for use in double mode on the harness side attachment points.
  • Available in four lengths: 2, 3, 4 and 5 m. Lanyard length is immediately identified by a color-coded label at the connector end.
  • Replacement ropes available.
  L052BA00 L052BA01 L052BA02 L052BA03
Colour White/Yellow White/Yellow White/Yellow White/Yellow
Weight 635g 715g 795g 875g





Manufacturer's Downloads



Specification

Lanyard

Lanyard Type
Single
Energy Absorbing
without Energy Absorber
Adjustable / Non Adjustable
Adjustable
Size
2m, 3m, 4m, 5m,
End Termination
Sewn terminations with plastic sheath protection and one captive snap hoop

General

Industrial or Sport Use
Industrial
Material
Nylon, Polyester, Aluminium,
Conformity
CE EN358
EAC
CE EN12841 Type C
Weight (g)
635g, 715g, 795g, 875g,
