SAS Mobile A-Frame Deadweight Anchor

SAS
Code:
From £3,000.00
RRP £3,480.00
Save £480.00
(inc. VAT)

SAS A-Frame Deadweight Anchor

The  A Frame Deadweight Rope Access Anchor is suitable for use on flat roof surfaces behind a parapet wall, with a minimum height of 300mm.

Full description

Description

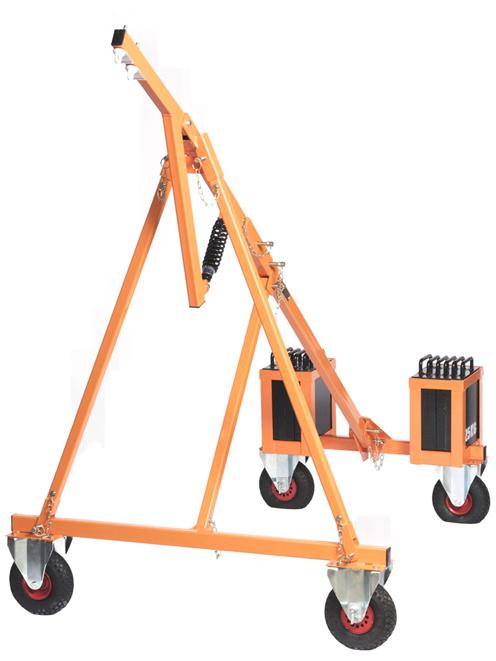

SAS A-Frame Deadweight Anchor

Ideal for any location without suitable structural anchor points, or where anchor points would be problematic or too expensive to install, the A-Frame deadweight rope access anchor has a Safe Working Load of 250kg and conforms to EN795 class 1 (PPE Temporary Anchor). Also designed & manufactured in accordance with BS7883:2005, and assists users to work in accordance with BS7985:2002.

Featuring an in-built shock absorber, it has 1.8m high anchor points which make it easy for an abseiler to start their descent and helps reduce the risk of ropes running over sharp edges.

The frame breaks down into seven pieces (plus weights) making it easily portable. Minimal assembly is required. The wheels are fitted with brake levers, so the unit can be moved sideways effortlessly by one man or locked as required. This function can reduce the need for re-rigging.

There is no need to penetrate the roof surface/membrane, eliminating any need for alteration to building aesthetics.

The tubular mild steel framework is finished with a yellow powder coating, and each unit is individually serial numbered. All joints are welded (no nuts or bolts are used in the framework’s construction), ensuring that the trolley is immensely strong and more than capable of dealing with the demanding nature of its working environment.

Product Information

Suitable for use on flat roof surface
(Only 300mm upstand required)

1.8m High anchor points
Enables user to easily start their descent

No damage to surfaces
Does not require penetration of roof membrane

Built in shock absorber

Unit can easily be moved sideways
Reducing the need for re-rigging

Minimal assembly required

Specification:

  • Weight: 390kg
  • Weight of individual weights: 25Kg
  • Weight of individual weights: 55 1/9lbs
  • Body material: Mild steel
  • Finish: Powder coated Yellow
  • Safe Working Load (SWL): 250Kg
  • Approved standards EN795:2012
  • Individually Serial Numbered

FAQs
Q: What is the distance from the inside edge of parapet wall to the furthest eyebolt?
A:The distance from inside edge of parapet wall to furthest eye bolt is 470 mm. This is assumed the A frame is pushed tight up to the inside edge of the wall.

Special order item. Only returnable for manufacturing fault

Specification

Deadweight Anchor

Body Finish
Powder Coated Orange
Individual Weights
25kg
No of Indiviual Weights
12 Weights
Safe Working Load
250kg
Collect from Manufacturer (Swindon) / Delivery
Delivery, Collect from Swindon,

General

Industrial or Sport Use
Industrial
Body Material
Mild Steel
Conformity
CE EN795 2012
Weight (kg)
390kg
