ISC D4 Descender

Code: RP880A1
£187.15
(inc. VAT)

ISC D4 Descender

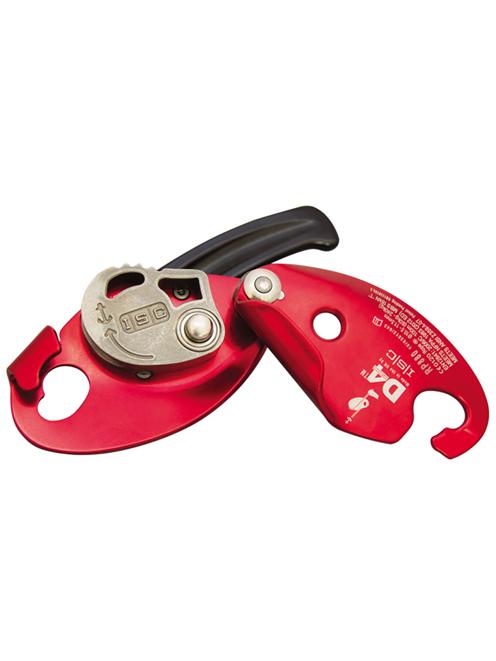

The D4 Descender features a unique and innovative progressive cam action, which offers precise control at slow or fast speed. The device 'fails to safe' (the device locks if the handle is released) and also has a panic brake feature (if the handle is pulled down in panic when in freefall then it locks the device - The progressive cam design means that this panic brake is not overly sensitive in normal use).

The device is made from a high grade aluminium and has a stainless steel cam, axles and top bobbin which should ensure a good degree of longevity. The beauty is that the internal workings are cleanable.

Full description

Description

ISC D4 Descender

The D4 Descender features a unique and innovative progressive cam action, which offers precise control at slow or fast speed. The device 'fails to safe' (the device locks if the handle is released) and also has a panic brake feature (if the handle is pulled down in panic when in freefall then it locks the device - The progressive cam design means that this panic brake is not overly sensitive in normal use).

The device is made from a high grade aluminium and has a stainless steel cam, axles and top bobbin which should ensure a good degree of longevity. The beauty is that the internal workings are cleanable.

The D4's other selling points are that it is rated to 240kg and does not require extra friction to operate at the top end of its range.

Operationally the D4 has a smooth rope run through the device and when the user is not in full suspension, such as if working on an incline (like an embankment), the design allows the cam to be squeezed open using your thumb to allow rope to feed through gently (no need to operate the handle).

Finally, the D4 works well in a belay mode as well as when put into a system such as a Z rig.

Suitable for low stretch ropes (EN1891) 10.5 -11.5mm.

FAQ's

Does the EN12841: 2006/C 100m (60kg - 240kg) shown on the front of the device mean it can only be used on ropes up to 100m?

No, the device can be used on any length of rope. The marking shows that the device was tested on a 100m length of rope and the minimum and maximum weights used were 60kg and 240kg.





Manufacturer's Downloads



Specification

Descender

Device Functions
Anti Panic Function
Rope Compatibility
10.5mm to 11mm
Maximum Working Load (kg)
240kg
Breaking Strength kN
16kN

General

Industrial or Sport Use
Industrial
Material
Aluminium
Colour
Red
Conformity
ANSI Z359
CE EN12841
NFPA (1983)
Dimensions
200mm x 83mm x 80mm
Weight (g)
678g
