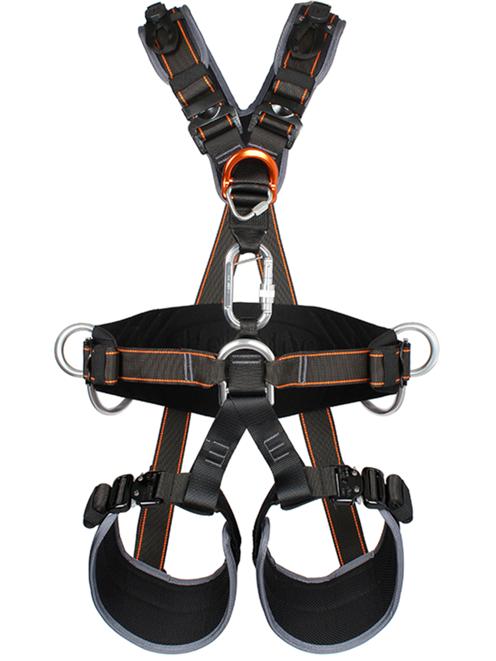

heightec Matrix - Rigging Harness

(inc. VAT)

Heightec MATRIX Rope access and Rigging Harness - With quick connect

Full description


Heightec MATRIX Rope access and Rigging Harness - With quick connect

The MATRIX rope access and rigging harness features ergonomically designed shoulder, waist and leg pads for greater comfort.

Waist section is articulated for maximum freedom of movement and comfort when not suspended. When the user is suspended from the waist D-ring the leg loops lift into a sitting position. When not suspended, the waist attachment moves downwards allowing the user to stand up straight. Alloy karabiner connects to a loop behind waist D-ring. Hook free gate prevents snagging and reduces potential webbing damage.

Ergonomically contoured pads are shaped and formed for comfort. 3 dimensional forming and plastic inserts provide support where it is needed but allow movement in essential areas.

Integral delta screwlink simplifies attachment and use of chest ascenders. Screwlink can be removed if not required.

Side D-rings allow work positioning attachments and fold away discreetly when not required.

Lightweight, durable gear loops with 20 kg rated load and 7:1 factor of safety. Accessories and tool bags can also be attached directly around the waist belt webbing.

Complies with Siemens PPE requirements PRO-13838 Ap1.

Size guide

  Standard Large
Torso 95 – 120cm 100 – 135cm
Waist 70 – 140cm 85 – 165cm
Thigh 60 – 80cm 60 – 100cm



  • Adjustable and releasable padded shoulder straps
  • Large front ring
  • Integral delta screwlink for chest ascender
  • Articulated waist section for freedom of movement
  • Shoulder, waist and leg pads
  • Integral delta screwlink for fitting a chest ascender
  • Folding side D-rings
  • Multiple tool and accessory attachments


Sizing: Universal

Material: Polyamide, mild steel and aluminium

EN Mass Test: 140kg

Loading: Fall arrest and Rescue

Weight: 2.15kg

Conformity: EN358, EN361, EN813


Manufacturer's Downloads



Harness Type
Full Body
Harness Sector
Rope Access
Specific Use
Fall Arrest, Rescue, Rope Access,
Harness Size
Weight (g)
Nominal Maximum Load


Black / Orange
Black / Orange
CE EN361
CE EN813
CE EN358
Weight (g)
