Tractel Blocfor 1.8m ESD Webbing Fall Arrest Block

Code:
From £140.22
(inc. VAT)

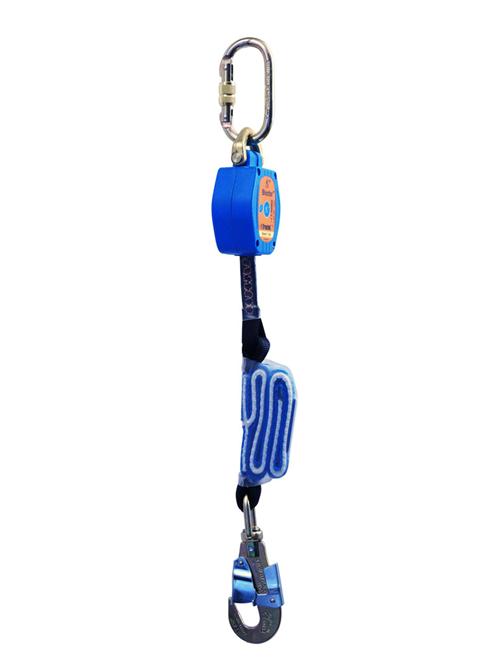

Tractel Blocfor 1.8A ESD Webbing Fall Arrest Block

The Tractel Blocfor 1.8A Energy System Dissipater (ESD) is based on the latest textile strap automatic fall arrest generation. The strap is made of aramide 15mm wide and 1.45m long enables a useful deployed length of 1.80 m.

This "A" version allows to hook the reel up the structure's anchorage.

Full description

Description

Tractel Blocfor 1.8A ESD Webbing Fall Arrest Block

The Tractel Blocfor 1.8A Energy System Dissipater (ESD) is based on the latest textile strap automatic fall arrest generation. The strap is made of aramide 15mm wide and 1.45m long enables a useful deployed length of 1.80 m.

This "A" version allows to hook the reel up the structure's anchorage. Suitable for use on terrace roofs. 1.8 meter webbing.

High Capacity Range 150 kg. Complies with CNB/P/11.062.

Key Features

  • Complies with EN 360 and CNB/P/11.060 standards for use on edges with a minimal 0.5 mm curve radius.
  • Can be used vertically or with a standard deviation of 20° in relation to vertical.
  • Can be used horizontally without the use of a lanyard between the end of the strap and harness.
  • Flexible unwinding system which doesn’t jerk during operator movement.
  • Responsive system which locks automatically in the event of a fall, reducing the total drop height.
  • Includes Energy System Dissipater (ESD) technology which enables the device to arrest a fall even when the webbing is fully unwound.
  • Integrated fall indicator
  • Length 1.8 metres, webbing version
  • Lightweight.
  • ABS fibre reinforced polyamide housing.
  • Standard M47 swivel connector at end of shock absorber.





Manufacturer's Downloads



Specification

Backup Device

Length
1.8m
Lifeline Type
Webbing
Connector Options
M51 Aluminium Scaffold Hook, M10 Steel Karabiner, M53 Steel Scaffold Hook,

General

Industrial or Sport Use
Industrial
Conformity
CE EN360
CNB/P/11.060
