Skylotec Jackpod Winch

Code:
From £2,796.00
(inc. VAT)

Special order item

Skylotec Jackpod Winch

Skylotec Jackpod Winch to be used with the Jackpod Tri 2 Tripod. Includes 18m of wire and connector.

Full description

Description

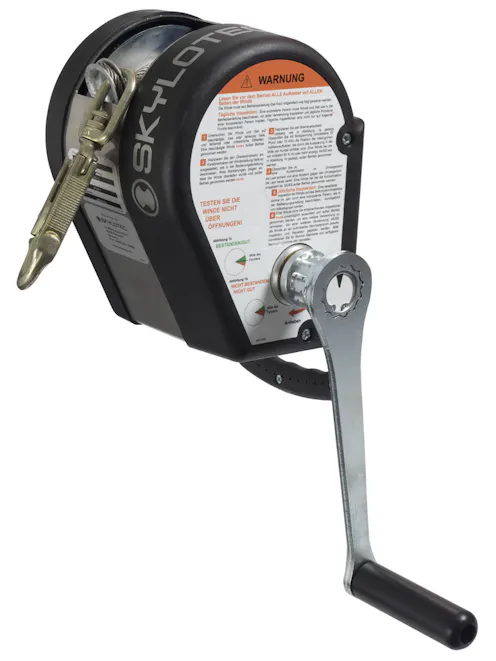

Skylotec Jackpod Winch

To be used with Skylotec Jackpod TRi 2 tripod, click here for details.

The Skylotec Jackpod winch has many advanced safety features, including multiple brake pawls, a secondary inertia actuated brake, easy to read visual brake wear indicator, visual overload indicator integral to the snap hook, and optional usage indicator.

This product has been specifically designed and carefully manufactured to provide reliable operation in many different safety-at-heights applications. These include, but are not limited to:

Work Positioning

The winch may be used for the suspension of a worker at a work position for the performance of a task. When a worker is suspended in a work seat or harness, a secondary personal fall arrest system must be used in addition to the suspension line. Personal fall arrest systems used with this winch must meet applicable OSHA or other local requirements.

Rescue

The winch may be used as part of a system to allow for the post-fall rescue of a worker protected by a personal fall arrest system. This winch meets the requirements of ANSI/ASSE Z359.4 for use as a rescue device.

Confined Space Entry / Retrieval and Rescue

The winch may be used as part of a system to facilitate access to and egress from a confined space as well as non-entry rescue in the event of an emergency. This winch meets the requirements of OSHA 1910.146, and ANSI/ASSE Z117.1 for use as a confined space entry/retrieval and rescue device.

Product Information

  • Product Number. JP-008-1
  • EAN 4030281203469
  • E-Class Number 40-02-01-90
  • Customs Number. 84254900

Special order Item please contact us for urgent orders





Manufacturer's Downloads



Specification

Category

Category
Winches & Hoists

Winches & Hoists

Winch & Hoist Type
Tripod Mounted, Winch,
Winch / Hoist Cable Type
For Steel Cable Use
With/without Jackpod Bracket
With Jackpod Bracket, Without Jackpod Bracket,
Rope Length
18m

General

Industrial or Sport Use
Industrial
Conformity
CE EN1496 , ANSI/ASSE Z359.4, CE EN795 Type B , OSHA 1910.146, ANSI/ASSE Z117.1,
Weight (kg)
16.04kg
Material
Steel, Synthetic,
