Rock Exotica Enforcer Load Measuring Loadcell

Rock Exotica
Code: LC1
£908.40
(inc. VAT)

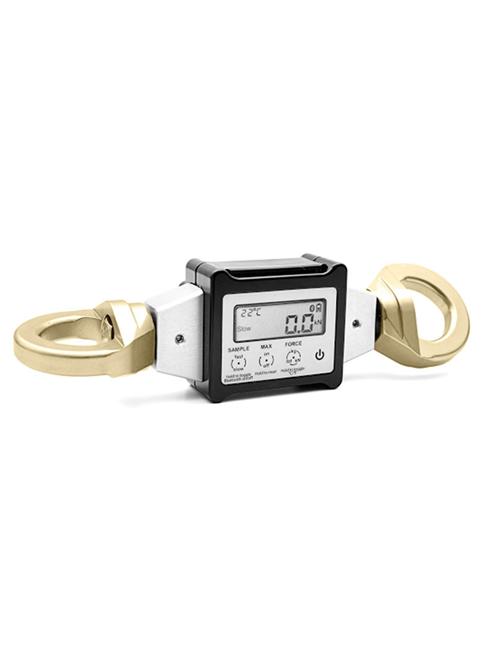

Rock Exotica Enforcer Loadcell

The Rock Exotica Enforcer is a compact aluminium load cell that measures force up to 20 kN. Utilizing two sampling modes, the Enforcer is able to monitor systems and log drop testing in high resolution. Unique features like Bluetooth connectivity and swivel attachment points separate the Enforcer into a class of its own.

IMPORTANT NOTICE: For use with iPhone IOS operating system only, (The app is not available on Android).

Full description

Description

Rock Exotica Enforcer Loadcell

The Rock Exotica Enforcer is a unique load cell far beyond anything else available. It was designed and optimized for our users to both monitor their system or use in testing.

Monitor Wirelessly

IMPORTANT NOTICE: For use with iPhone IOS operating system only, (The app is not available on Android).

The Rock Exotica Enforcer iphone app lets you monitor forces in your rigging system remotely in real-time. The app graphs and records up to four events in high-resolution 'Fast' mode. The user can download the data in .csv format for later analysis.

Technical Information

  • Lightweight aluminium construction.
  • Compact & portable design facilitates “in-line” use in rigging systems.
  • Swivel attachment points diminish potentially dangerous torsional and off-axis forces.
  • Features two sampling modes: “Slow” for monitoring and “Fast” for dynamic testing.
  • Monitor forces wirelessly on your iOS device with built-in Bluetooth connectivity.
  • Record and download graphs of events (Enforcer app for iphone required. Sold separately see link below).
  • Measures force in kg, lbf and kN.
  • Part Number: LC1.
  • MBS: 36 kN.
  • Max Reading: 20kN.
  • Accuracy: +/- 2%.
  • Length: 8.0"(203mm).
  • Width: 2.1(53mm).
  • Weight:14 oz (400gm)  w/batteries.
  • Certification: CE.

Rock Exotica Enforcer


Click here for information on the iphone app







Manufacturer's Downloads



Specification

General

Industrial or Sport Use
Industrial
Weight (g)
400g
