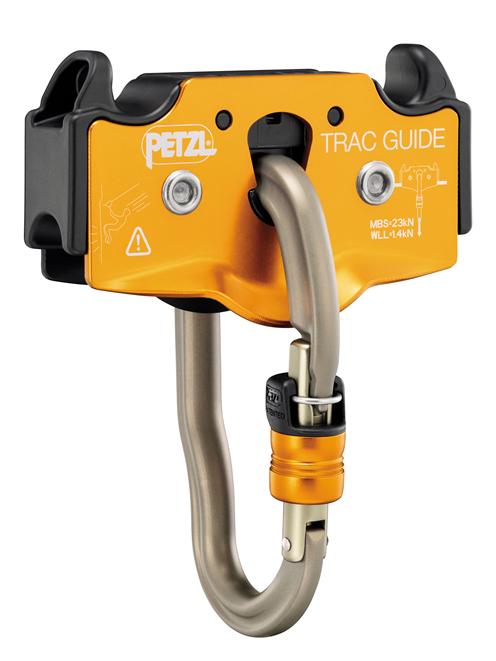

Petzl Trac Guide Trolley

Code: P024AB00
£131.86
(inc. VAT)

Petzl Trac Guide Trolley

Easy to install in-line pulley designed for adventure parks. Featuring an ergonomic captive karabiner, it allows the guide to quickly install the trolley on the cable with one hand. Because the karabiner pivots, the trolley remains in position on the cable when it makes contact with the end brake of the zip line. The ends are equipped with protective impact surfaces to reduce the risk of pinched fingers. For use on both wire or rope 9-13mm.

Full description

Description

Petzl Trac Guide Trolley

(Please note only one karabiner is supplied with the Trac Guide Trolley)


Key Features

  • Trolley designed for adventure parks:
    • - Ergonomic captive karabiner allows the guide to quickly install the trolley on the cable with one hand
    • - Two aligned sheaves provide excellent stability on the zip line
    • - Because the karabiner can pivot, the trolley remains in position on the cable when it makes contact with the end brake of the zip line
    • - Front and rear impact surfaces limit the risk of pinched fingers
    • - Two positioning support grooves for the connectors limit abrasion from the cable
    • - JOKO or AVENTEX lanyards are directly integrated in the karabiner, limiting the risk of separating or losing the trolley/lanyard unit
    • - Connect easily to the harness with the CARITRAC stowing accessory
  • Optimal durability for easy maintenance and extended product life:
    • - Double-row ball-bearings offer optimal durability
    • - Karabiner with reinforced construction and hard anodization for greater resistance to damp and salty environments
    • - Impact surfaces optimize contact between the trolley and the end brake of the zip line
    • - Karabiner and impact surfaces are completely removable and available as replacement parts to extend the life of the trolley



Specifications

Cable diameter: 9 to 13 mm (may also be used on ropes)
Weight per unit: 425 g
Material(s): Aluminum frame and karabiner, stainless steel sheave, nylon
Certification(s): CE EN 17109, CE EN 12278, UIAA
Maximum speed: 25 m/s



Manufacturer's Downloads



Specification

Pulley

Pulley Type
Tandem (In-line)
Pulleys Cheek
Fixed Cheek
Pulley Wheel Material
Stainless Steel
Pulley Efficiency
Bearing / High Efficiency
Minimum Rope Diameter (mm)
9mm
Maximum Rope Diameter (mm)
13mm
Minimum Cable Diameter (mm)
9mm
Maximum Cable Diameter
13mm
Working Load Limit (kN)
1.4kN
Max Breaking Strength (kN)
20kN

General

Industrial or Sport Use
Industrial, Sport,
Material
Aluminium, Nylon, Stainless Steel,
Conformity
UIAA
CE EN12278
CE EN17109: 2020
Weight (g)
425g
Operating Temperature from
-40°C / -40°F
Operating Temperature to
+80°C / +176°F
Lifetime
Unlimited
Guarantee
3 Years
