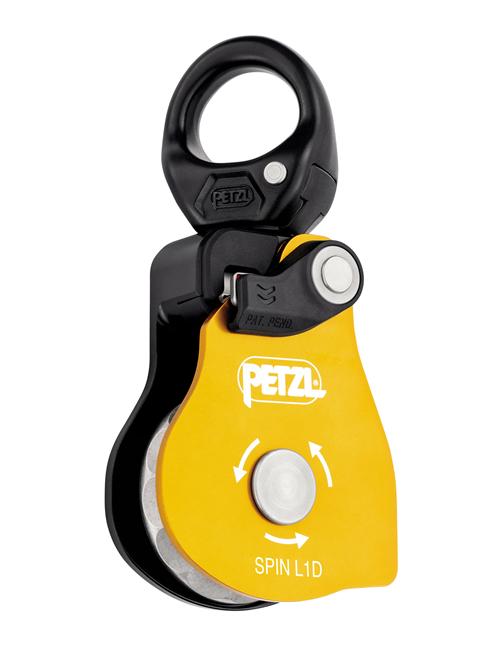

Petzl Spin L1D Swivel Pulley
Petzl Spin L1D Swivel Pulley
The Petzl Spin L1D is a very high efficiency single pulley with one-way rotation and swivel, it can be opened even when attached to the anchor, this pulley is designed to be used in conjunction with a descender for maximum simplicity in setting up a deviation for a heavy load. The faceted sheave only rotates in one direction, providing excellent efficiency when hauling and adding friction zones for the rope for additional braking when lowering. The swivel facilitates handling, allowing the pulley to be oriented under load, and direct connection of karabiners, ropes or slings.
Fast Delivery
Deliveries
Coronavirus latest: We are still open for business! Please click here for our full statement on our operations.
We pride ourselves on our excellent service and aim to despatch all orders promptly. If you order before 3pm Monday to Friday we will try to send it out that day, for next working day delivery. Orders:
- placed after 3pm Monday to Thursday will be processed the next day
- placed after 3pm on a Friday or at a weekend or on a Bank Holiday will be processed on the next working day
- Orders to the Highlands, Islands and Out of Area may be a two-day delivery and overseas will be longer
Please call us for time-critical orders, so we can process the order as a matter of urgency and confirm the delivery schedule.
All goods are subject to availability. If we can't supply your goods within 30 days from the date of order, we will inform you immediately and let you know the expected delivery date.
Courier service
If you opt for a courier delivery, you will receive an email or text on the day we despatch your order, informing you that it is enroute. On the morning of delivery, at around 07:30, you will receive a further email or text giving you a 1-hour delivery time slot. Please therefore ensure that you have given us the correct mobile number and email address.
Couriers are extremely busy during Christmas and the sales, so please allow extra time.
We will not be held liable for any consequential loss caused by late or failed deliveries.
Timed deliveries / Saturday & Sunday deliveries
We can arrange timed deliveries for:
Weekdays:
- pre-10:30am
- pre-12 (midday)
Weekends:
- Saturday pre-10:30am
- Saturday pre-12 (midday)
- Sunday (anytime)
Some of the timed delivery options are available via the website, for others including a Sunday delivery, please call the office for a confirmed price and to arrange the alternate delivery.
Important Note:
Timed deliveries are subject to stock availability (we will contact you if any of your order is not in stock, so you can confirm if you would like us to split the delivery) and must be placed by 3pm Monday to Friday. Please call us if it's after 3pm as we may still be able to catch our couriers.
Description
Petzl Spin L1D Swivel Pulley
Key Features
- Large diameter (40mm) sheave mounted on sealed ball bearings
- Swing cheek
- High Strength – 3 x 2 6kN Working Load Limit (WLL)
- Very high efficiency – 93%
- Breaking Load (MBS): 36kN
- Weight 425g
Rope compatibility
8mm to 13mm
Different versions
Accessories
Petzl 10mm OK Oval Triact Karabiner
Petzl 11mm Aluminium AmD Triple Action Karabiner
Petzl Bm'D Gray Lightweight High Strength Karabiner
Petzl Oxan Triple Action Oval Steel Karabiner
Petzl Vulcan Triact-Lock Karabiner - International
Cleaning
Wash and rinse in clean water using pure soap
+30°C / 86°F (max.)
Drying
Dry in a well-ventilated place away from direct sources of heat or sunlight.
+30°C / 86°F (max.)
Manufacturer's Downloads
Specification
Pulley
|
Pulley Type
|
Single
|
|---|---|
|
Pulleys Cheek
|
Swing Cheek
|
|
Pulleys Additional Features
|
Integrated Swivel
|
|
Pulley Wheel Material
|
Aluminium
|
|
Pulley Efficiency
|
Bearing / High Efficiency
|
|
Sheave Diameter (mm)
|
40mm
|
|
Pulley Efficiency
|
93%
|
|
Pulley Locking
|
One Way Locking
|
|
Minimum Rope Diameter (mm)
|
8mm
|
|
Maximum Rope Diameter (mm)
|
13mm
|
|
Working Load Limit (kN)
|
6kN
|
|
Max Breaking Strength (kN)
|
36kN
|
General
|
Industrial or Sport Use
|
Industrial
|
|---|---|
|
Material
|
Aluminium, Nylon, Stainless Steel,
|
|
Conformity
|
NFPA 1983 General Use
CE EN12278
|
|
Weight (g)
|
425g
|
|
Operating Temperature from
|
+80°C / +176°F
|
|
Operating Temperature to
|
-40°C / -40°F
|
|
Lifetime
|
Unlimited
|
|
Guarantee
|
3 Years
|
