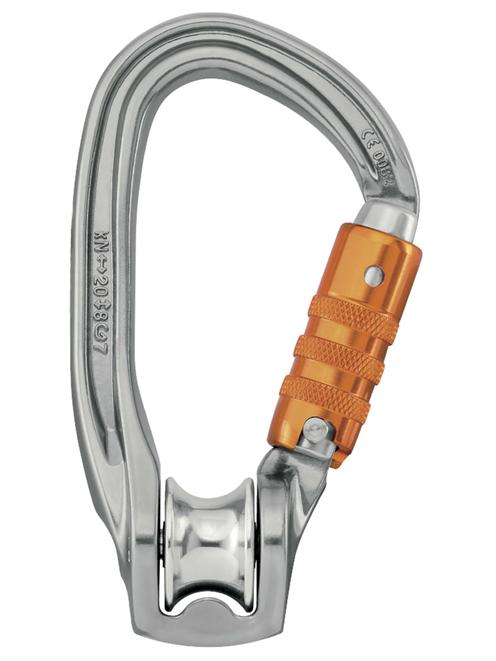

Petzl Rollclip Z Pulley Karabiner Triact Lock

Code: P75TL
£45.60
(inc. VAT)

Petzl Rollclip Z Triact Lock Pulley Karabiner with integrated pulley wheel.

The Petzl Rollclip Z is a pulley karabiner that facilitates installation on anchors and devices. The Rollclip Z pulley has the gate opening on the non pulley side.

Full description

Description

Petzl Rollclip Z Triact Lock Pulley Karabiner with integrated pulley wheel.

The Petzl Rollclip Z Triact karabiner has an integrated pulley wheel which helps reduce friction / rope drag. With a triple action gate it offers the highest level of safety. Ideal for use in situations where a moving rope needs to be deviated but space is limited or weight of equipment is an issue.

The new Petzl Triact Z (Triple Action - lift, twist and pull to open) Rollclip karabiner incorporates a mini pulley which helps reduce friction / rope drag when a rope runs over it. By blending the pulley wheel with the karabiner it reduces the height lost which can be important when used in rescue (compare the height lost when using a seperate karabiner and pulley). Also available with a screw gate locking system.





Manufacturer's Downloads



Specification

Single Pulley Rollclip

Pulley Type
Single
Pulleys Additional Features
Rollerclip / Revolver
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
21-30kN
Pulley Efficiency
85%
Maximum Rope Diameter (mm)
13mm
Minimum Rope Diameter (mm)
7mm
Gate Type
Triple Action (Locksafe)
Gate Opening (mm)
20mm
Open Gate Strength (kN)
7kN
Major Axis Strength (kN)
20kN
Minor Axis Strength (kN)
8kN
Working Load Limit (kN)
4kN

General

Industrial or Sport Use
Industrial
Material
Aluminium Body
Conformity
CE EN362
CE EN12278
EAC
Weight (g)
110g
