Petzl Petzl Rescue S Pulley

Code:
From £39.60
(inc. VAT)

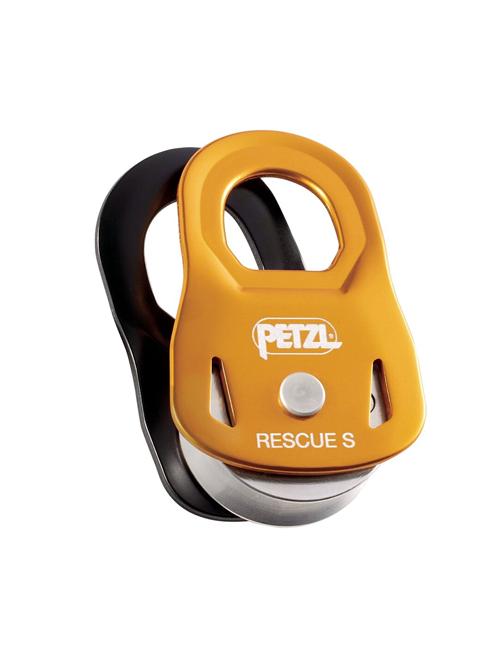

Petzl Rescue S Pulley

Lightweight and ultra-compact, high efficiency pulley

The RESCUE S pulley is designed for work-at-height professionals and for setting up on-site rescue systems. Ultra-compact, lightweight, and high efficiency, it is designed for handling moderate loads.



Full description

Description

Petzl Rescue S Pulley


Key Features

  • Designed for handling moderate loads:
    - Sheave mounted on sealed ball bearings provides high efficiency
    - Ultra-compact and lightweight, ideal for everyday work-at-height use or for on-site rescue
  • Moving side plates make it quick and easy to install the rope
    - Attachment holes allow most European-standard carabiners to rotate
  • Available in two colors: Yellow or black

Specifications

  • Rope compatibility: 6 to 11 mm
  • Sheave diameter: 25 mm
  • Ball bearings: Yes
  • Efficiency: 91 %
  • Maximum working load: 5 kN
  • Breaking strength: 18 kN
  • Weight: 52 g
  • Certification(s): CE EN 12278, UIAA, NFPA Technical Use, XF 494 Light
  • Material(s): Aluminum, stainless steel


Cleaning

Wash and rinse in clean water using pure soap
+30°C / 86°F (max.)

Drying

Dry in a well-ventilated place away from direct sources of heat or sunlight.
+30°C / 86°F (max.)


Manufacturer's Downloads



Specification

Pulley

Pulley Type
Single
Pulleys Cheek
Swing Cheek
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
16-20kN
Pulley Efficiency
Bearing / High Efficiency
Sheave Diameter (mm)
25mm
Pulley Efficiency
91%
Minimum Rope Diameter (mm)
6mm
Maximum Rope Diameter (mm)
11mm
Working Load Limit (kN)
5kN
Max Breaking Strength (kN)
18kN

General

Industrial or Sport Use
Industrial
Colour
Black, Yellow,
Material
Aluminium Body, Stainless Steel Sheave,
Conformity
CE EN12278
NFPA 1983 General Use
UIAA
Weight (g)
52g
Operating Temperature from
+80°C / +176°F
Operating Temperature to
-40°C / -40°F
Lifetime
Unlimited
Guarantee
3 Years
