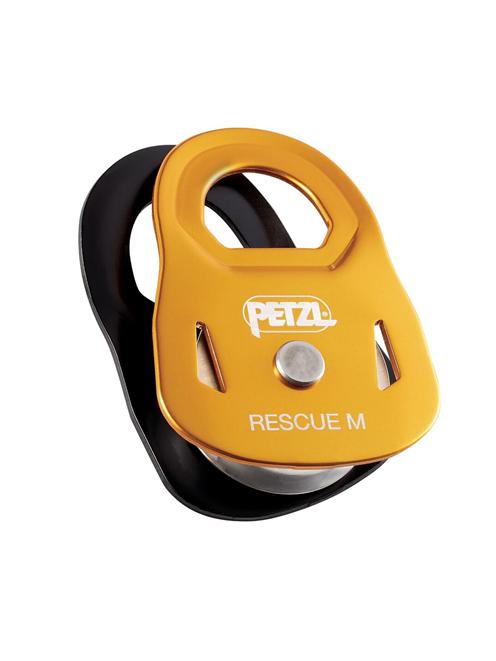

Petzl Petzl Rescue M Pulley

Code:
From £63.60
(inc. VAT)

Petzl Rescue M Pulley

High-strength, very high efficiency pulley

High-strength and very high efficiency, the RESCUE M is built for intensive use and handling heavy loads.



Full description

Description

Petzl Rescue M Pulley


Key FeaturesI

  • Designed to handle heavy loads and for intensive use:
    - Large-diameter sheave mounted on sealed ball bearings provides very high efficiency
    - Large attachment holes fit up to three carabiners for ease of use
    - Specific side plate design protects the rope path
  • Moving side plates make it quick and easy to install

Specifications

  • Rope compatibility: 6 to 13 mm
  • Sheave diameter: 38 mm
  • Ball bearings: Yes
  • Efficiency: 95 %
  • Maximum working load: 8 kN
  • Breaking strength: 36 kN
  • Weight: 140 g
  • Certification(s): CE EN 12278, UIAA, NFPA General Use, XF 494 General
  • Material(s): Aluminum, stainless steel


Cleaning

Wash and rinse in clean water using pure soap
+30°C / 86°F (max.)

Drying

Dry in a well-ventilated place away from direct sources of heat or sunlight.
+30°C / 86°F (max.)


Manufacturer's Downloads



Specification

Pulley

Pulley Type
Single
Pulleys Cheek
Swing Cheek
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
31-40kN
Pulley Efficiency
Bearing / High Efficiency
Sheave Diameter (mm)
38mm
Pulley Efficiency
95%
Minimum Rope Diameter (mm)
6mm
Maximum Rope Diameter (mm)
13mm
Working Load Limit (kN)
8kN
Max Breaking Strength (kN)
36kN

General

Industrial or Sport Use
Industrial
Colour
Black, Yellow,
Material
Aluminium Body, Stainless Steel Sheave,
Conformity
CE EN12278
NFPA 1983 General Use
UIAA
Weight (g)
140g
Operating Temperature from
+80°C / +176°F
Operating Temperature to
-40°C / -40°F
Lifetime
Unlimited
Guarantee
3 Years
