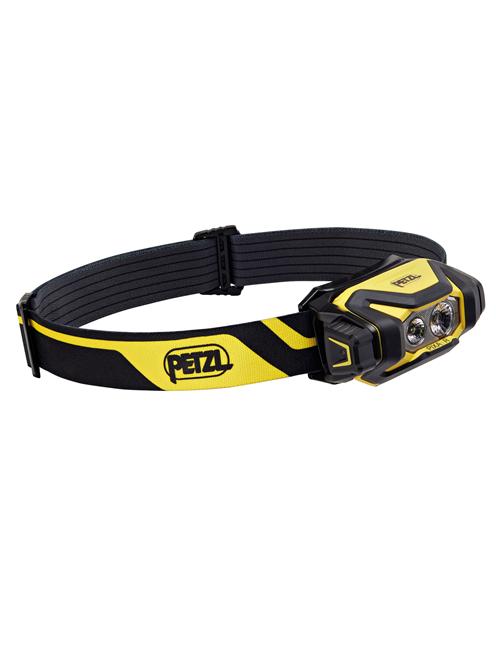

Petzl Pixa R head torch

Petzl Pixa R head torch

Compact, durable, waterproof, and rechargeable headlamp designed for demanding environments. 600 lumens (BOOST mode)

Easy to use, with a single selector that controls all functions. The rotating selector can be used while wearing gloves. The PIXA R comes with the CORE PRO rechargeable battery (1250 mAh). It's removable and can be switched out in order to continue working. Featuring CONSTANT LIGHTING technology, it provides a constant level of brightness. Casting 600 lumens in BOOST mode and three beam types (wide, mixed, and focused), the PIXA R adapts to a variety of work situations.

The PIXA R should not be used in a potentially explosive atmosphere.

Key Features

• Designed for intensive and demanding use by industrial professionals:

- Durable, the lamp is impact resistant (IK08), fall resistant (up to 2 meters), and crush resistant (up to 80 kg)
- Dustproof and waterproof in up to 2 meters of water for 1 hour (IP68)
- Resistant to certain chemicals (1)

• Versatile lighting for a wide variety of situations:

- Headlamp features CONSTANT LIGHTING technology, providing a constant level of brightness throughout the duration of use
- Wide, uniform beam provides comfortable lighting for close-range work
- Two mixed beams for moving
- Focused beam for distance vision
- 10-second BOOST mode can be used at any time for the occasional need for maximum brightness

• Rechargeable:

- The PIXA R comes with its CORE PRO rechargeable battery (1250 mAh / 3.6 V / 4.5 Wh)
- The headlamp can be recharged without removing the battery, via three external charging contact points (charging cable included)
- The CORE PRO battery is removable, so it can be recharged externally and switched out in order to continue working

• Easy to use and convenient:

- Single rotating selector knob controls all functions and can be used while wearing gloves
- Selector knob is on the side of the headlamp, so it can be used without dirtying the lens
- Plate allows you to tilt the lamp up or down
- Battery charge indicator shows the battery level each time lamp is turned on or off
- When turned off, the lamp automatically locks to prevent it from accidentally turning on
- Rotates 180° to protect the lens during storage or transport
- Symmetrical headband adjustment system makes it easy to adjust
- Headband can be removed and washed
- The SLOT ADAPT plate, included with the headlamp, makes it easy to install on a Petzl professional helmet with a slot
- The PIXA R is compatible with the HELMET ADAPT adhesive plate (available as an accessory) for installing it on a variety of helmet types

(1) List of tested chemical products: 90° alcohol, bleach, mineral spirits, hexane (one of the principal components in gasoline), silicone sealant.
Note: The PIXA R should not be used in a potentially explosive atmosphere.

Specifications

• Weight: 130 g
• Brightness: 600 lumens (ANSI/PLATO FL 1)
• Beam pattern: Wide, mixed, or focused
• Watertightness: IP68
• Energy: 1250 mAh CORE PRO rechargeable battery, 3.6 V, 4.5 Wh (included)
• Durability: Impact resistant IK08 (EN/IEC 62262)
• Charging time: 3.5 h
• Certification(s): CE

Performance

Lighting Technology	Lighting Modes	Beam Type	Brightness	Distance	Burn Time	Reserve Mode
Constant Lighting	Close-Range Work	Wide	45 lm	15m	12h	15 lm for 2h
	Movement	Mixed	90 lm	30m	6h
	Rapid Movement	Mixed	250 lm	50m	2h
	Distance Vision	Focused	250 lm	65 m	2h
Boost		Mixed	600 lm	90 m	10 Sec

Different versions

Petzl Pixa
Petzl Pixa Zero

Accessories

Petzl Pixadapt
Petzl Rubber
Petzl Crochlamp S helmet clips for thin edged helmets
Petzl Crochlamp L helmet clips for thick edged helmets
Petzl Pixa replacement headband
Petzl Pouche

Cleaning

Wash and rinse in clean water using pure soap
+30°C / 86°F (max.)

Drying

 Dry in a well-ventilated place away from direct sources of heat or sunlight.
