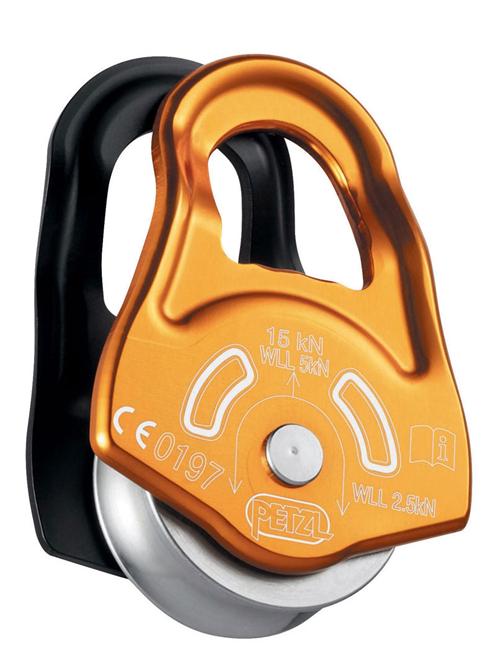

Petzl Partner Pulley

Code: P52A
£33.44
(inc. VAT)

Petzl Partner Pulley

The Compact and ultra-lightweight Petzl Partner is a pulley designed for a variety of uses including deviations and haul systems with progress capture.

Full description

Description

Petzl Partner Pulley


Key Features

  • Compact and lightweight
  • Swing cheek
  • Self-lubricating bushings
  • Strength – 5kN Working Load Limit (WLL)
  • Efficiency – 91%
  • Breaking Load (MBS): 15kN



Rope compatibility

7mm to 11mm

Different versions

Petzl Mobile

Accessories

Petzl Tibloc


Cleaning

Wash and rinse in clean water using pure soap +30°C / 86°F (max.)

Drying

Dry in a well-ventilated place away from direct sources of heat or sunlight.
+30°C / 86°F (max.)




Manufacturer's Downloads



Specification

Pulley

Pulley Type
Single
Pulleys Cheek
Swing Cheek
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
0-15kN
Pulley Efficiency
Bearing / High Efficiency
Sheave Diameter (mm)
25mm
Pulley Efficiency
91%
Minimum Rope Diameter (mm)
7mm
Maximum Rope Diameter (mm)
11mm
Working Load Limit (kN)
5kN
Max Breaking Strength (kN)
15kN
Nominal Maximum Load
15kN

General

Industrial or Sport Use
Industrial
Material
Aluminium Body, Aluminium Sheave,
Conformity
UIAA
CE EN12278
Weight (g)
56g
Operating Temperature from
-40°C / -40°F
Operating Temperature to
+80°C / +176°F
Lifetime
Unlimited
Guarantee
3 Years
