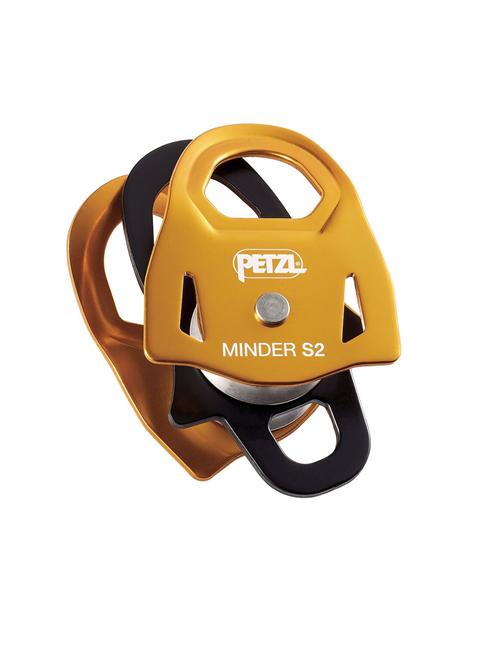

Petzl Minder S2 Pulley

Code: P060BA00
£80.40
(inc. VAT)

Petzl Minder S2 Pulley

Lightweight, high efficiency, double Prusik pulley

The MINDER S2 pulley is designed for rescue professionals. Its special side plates are designed for use with a Prusik friction hitch in progress-capture systems. With two mounted sheaves and an auxiliary attachment point, it is designed for setting up complex haul systems. Compact and lightweight, it provides good efficiency for handling moderate loads.


Full description

Description

Petzl Minder S2 Pulley


Key Features

  • Use in progress-capture systems:
    - Moving side plates designed for use with a Prusik friction hitch
  • Designed for handling moderate loads:
    - Sheave mounted on sealed ball bearings provides high efficiency I
    - Possible to set up complex haul systems, with two parallel-mounted sheaves and an auxiliary attachment point
    - Compact and lightweight
    - Specific side plate design protects the rope path
    - Attachment holes allow most European-standard carabiners to rotate

Specifications

  • Rope compatibility: 6 to 11 mm
  • Sheave diameter: 25 mm
  • Ball bearings: Yes
  • Efficiency: 91 %
  • Maximum working load: 6 kN
  • Breaking strength: 23 kN
  • Breaking strength of the auxiliary attachment point: 12 kN
  • Weight: 123 g
  • Certification(s): CE EN 12278, UIAA, NFPA Technical Use, XF 494 Light
  • Material(s): Aluminum, stainless steel


 Rope compatibility

 Rope diameter - 6mm-11mm


Cleaning

Wash and rinse in clean water using pure soap +30°C / 86°F (max.)

Drying

Dry in a well-ventilated place away from direct sources of heat or sunlight.
+30°C / 86°F (max.)


Manufacturer's Downloads



Specification

Pulley

Pulley Type
Double / Twin
Pulleys Cheek
Swing Cheek
Pulleys Additional Features
Prussik Minding
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
21-30kN
Pulley Efficiency
Bearing / High Efficiency
Minimum Rope Diameter (mm)
6mm
Maximum Rope Diameter (mm)
11mm
Working Load Limit (kN)
8kN
Max Breaking Strength (kN)
23kN

General

Industrial or Sport Use
Industrial
Material
Aluminium Body, Stainless Steel Sheave,
Conformity
CE EN12278
NFPA 1983 General Use
Weight (g)
123g
Operating Temperature from
-40°C / -40°F
Operating Temperature to
+80°C / +176°F
Lifetime
Unlimited
Guarantee
3 Years
