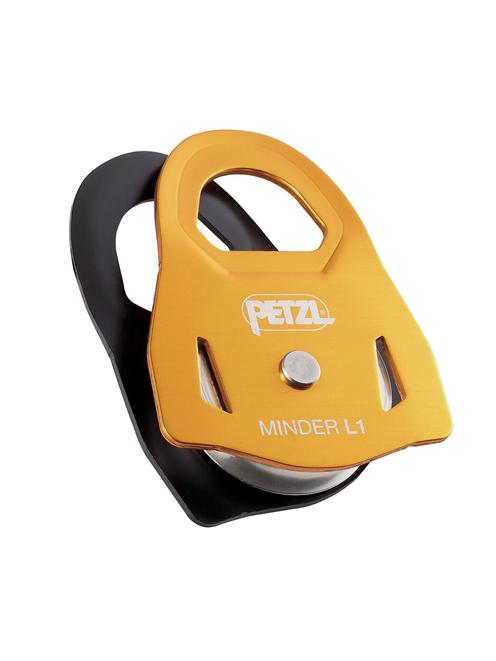

Petzl Minder L1 Pulley

Code: P060CA00
£80.40
(inc. VAT)

Petzl Minder L1 Pulley

High strength, very high efficiency Prusik pulley

The MINDER L1 pulley is designed for rescue professionals. Its special side plates are designed for use with a Prusik friction hitch in progress-capture systems. High-strength and very high efficiency, it is built for intensive use and handling heavy loads.


Full description

Description

Petzl Minder L1 Pulley


Key Features

  • Use in progress-capture systems:
    - Moving side plates designed for use with a Prusik friction hitch
  • Designed to handle heavy loads and for intensive use:
    - Large-diameter sheave mounted on sealed ball bearings provides very high efficiency
    - Large attachment holes fit up to three carabiners for ease of use
    - Specific side plate design protects the rope path55

Specifications

  • Rope compatibility: 6 to 13 mm
  • Sheave diameter: 51 mm
  • Ball bearings: Yes
  • Efficiency: 97 %
  • Maximum working load: 8 kN
  • Breaking strength: 36 kN
  • Weight: 237 g
  • Certification(s): CE EN 12278, NFPA General Use, XF 494 General
  • Material(s): Aluminum, stainless steel


 Rope compatibility

 Rope diameter - 6mm-13mm


Cleaning

Wash and rinse in clean water using pure soap +30°C / 86°F (max.)

Drying

Dry in a well-ventilated place away from direct sources of heat or sunlight.
+30°C / 86°F (max.)




Manufacturer's Downloads



Specification

Pulley

Pulley Type
Single
Pulleys Cheek
Swing Cheek
Pulleys Additional Features
Prussik Minding
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
31-40kN
Pulley Efficiency
Bearing / High Efficiency
Minimum Rope Diameter (mm)
6mm
Maximum Rope Diameter (mm)
13mm
Working Load Limit (kN)
8kN
Max Breaking Strength (kN)
36kN

General

Industrial or Sport Use
Industrial
Material
Aluminium Body, Stainless Steel Sheave,
Conformity
CE EN12278
NFPA 1983 General Use
Weight (g)
237g
Operating Temperature from
-40°C / -40°F
Operating Temperature to
+80°C / +176°F
Lifetime
Unlimited
Guarantee
3 Years
