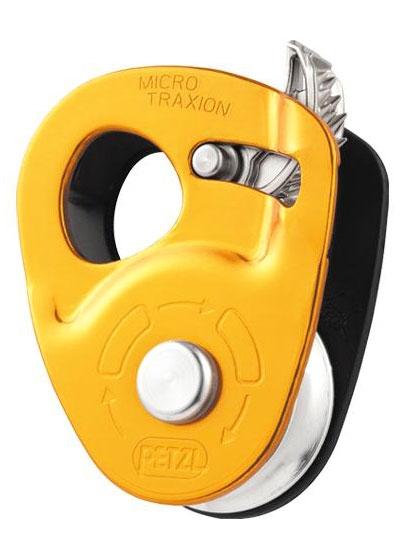

Petzl Micro Traxion Pulley

Code: P53
£71.66
(inc. VAT)

Petzl Micro Traxion Pulley

The Ultra-compact Petzl Micro Traxion is a high efficiency pulley with switchable progress capture

Full description

Description

Petzl Micro Traxion Pulley


Key Features

  • Progress capture
  • Efficiency – 91%
  • 25mm sheave mounted on sealed ball bearings
  • Toothed cam with self-cleaning slot which helps prevent dirty and ice build-up
  • Strength – Progress Capture – 2.5kN Working Load Limit (WLL)
  • Strength – Pulley – 5kN Working Load Limit (WLL)
  • Breaking Load (MBS) Progress Capture - 4kN
  • Breaking Load (MBS) Pulley - 15kN


Rope compatibility

Low stretch rope conforming to EN 1891 Type A or Dynamic rope to EN 892 with a diameter between 8mm-11mm


Accessories

Petzl Tibloc
Petzl Partner


Cleaning

Wash and rinse in clean water using pure soap
+30°C / 86°F (max.)

Drying

Dry in a well-ventilated place away from direct sources of heat or sunlight.
+30°C / 86°F (max.)





Manufacturer's Downloads



Specification

Pulley

Pulley Type
Single
Pulleys Cheek
Swing Cheek
Pulleys Additional Features
Progress Capture / One-way Lock
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
0-15kN
Pulley Efficiency
Bearing / High Efficiency
Sheave Diameter (mm)
25mm
Pulley Efficiency
91%
Pulley Locking
One Way Locking
Minimum Rope Diameter (mm)
8mm
Maximum Rope Diameter (mm)
11mm
Working Load Limit (kN)
5kN
Max Breaking Strength (kN)
15kN

General

Industrial or Sport Use
Sport
Material
Aluminium, Nylon, Steel, Stainless Steel,
Conformity
UIAA
CE EN567
EAC
Weight (g)
85g
Operating Temperature from
-40°C / -40°F
Operating Temperature to
+80°C / +176°F
Lifetime
Unlimited
Guarantee
3 Years
