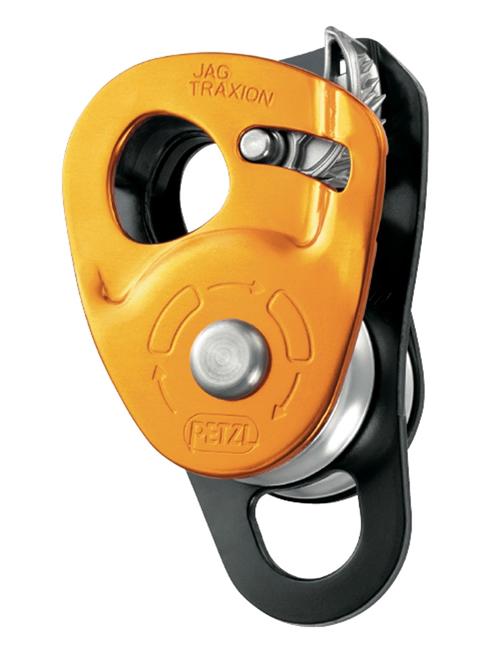

Petzl Jag Traxion Progress Capture Pulley

Product code: P54
£101.40
(inc. VAT)

Petzl Jag Traxion Pulley

Double progress capture pulley designed for use with the JAG double pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.

Full description

Description

Petzl Jag Traxion Pulley

Double progress capture pulley designed for use with the JAG double pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.

Key Features

  • Designed for use with the JAG double pulley to make a 4:1 haul system.
  • Toothed cam with self-cleaning slot optimizes performance under any conditions (frozen or muddy ropes...).
  • Sheave mounted on sealed ball bearings for excellent efficiency.





Manufacturer's Downloads



Specification

Pulley

Pulley Type
Double / Twin
Pulleys Cheek
Swing Cheek
Pulleys Additional Features
Progress Capture / One-way Lock
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
16-20kN
Pulley Efficiency
Bearing / High Efficiency
Sheave Diameter (mm)
25mm
Pulley Efficiency
91%
Minimum Rope Diameter (mm)
8mm
Maximum Rope Diameter (mm)
11mm
Working Load Limit (kN)
6kN
Max Breaking Strength (kN)
16kN

General

Industrial or Sport Use
Industrial
Material
Aluminium, Nylon,
Conformity
CE EN567
NFPA 1983 Technical Use
Weight (g)
145g

Related video

Petzl Jag Traxion Pulley
