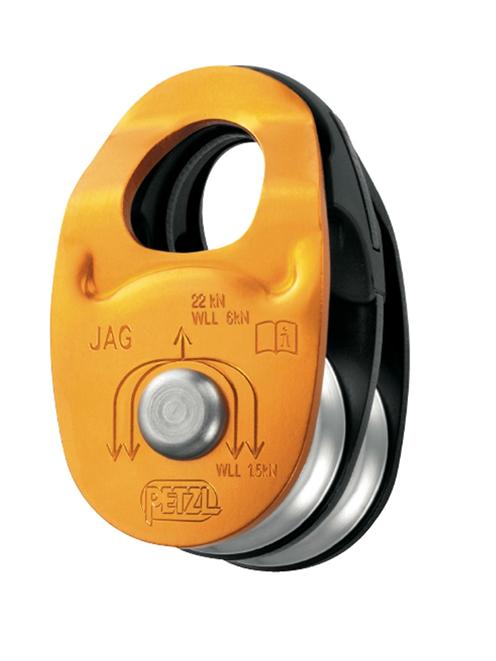

Petzl Jag Double Twin Pulley

Code: P45
£60.00
(inc. VAT)

Petzl Jag Pulley

The Petzl Jag double pulley is designed for use with the Jag Traxion double progress capture pulley to make a 4:1 haul system. This pulley has sheaves mounted on sealed ball bearings for excellent efficiency.

Full description

Description

Petzl Jag Pulley

High-efficiency double pulley

Key Features

  • Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system.
  • Sheaves mounted on sealed ball bearings for excellent efficiency.





Manufacturer's Downloads



Specification

Pulley

Pulley Type
Double / Twin
Pulleys Cheek
Swing Cheek
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
16-20kN
Pulley Efficiency
Bearing / High Efficiency
Sheave Diameter (mm)
25mm
Pulley Efficiency
91%
Minimum Rope Diameter (mm)
8mm
Maximum Rope Diameter (mm)
11mm
Working Load Limit (kN)
6kN
Max Breaking Strength (kN)
16kN

General

Industrial or Sport Use
Industrial
Material
Aluminium, Nylon,
Conformity
NFPA 1983 Technical Use
CE EN12278
Weight (g)
120g
