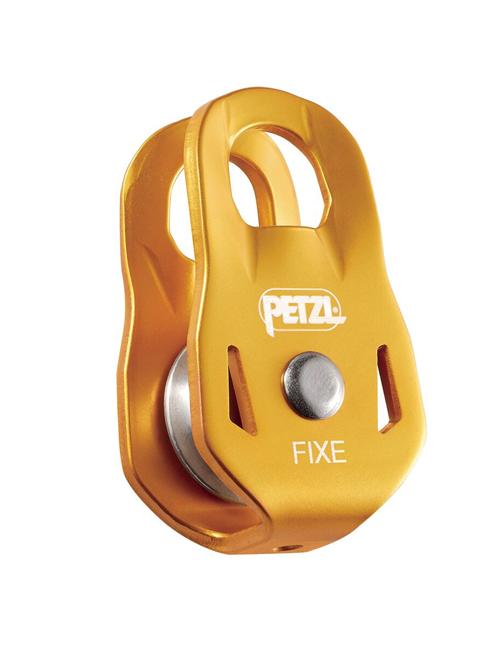

Petzl Fixe Pulley 2026 Version

Code:
From £26.40
(inc. VAT)

Petzl Fixe Pulley

Compact and versatile pulley with fixed side plates

With a compact and versatile design, the FIXE pulley is built for setting up haul systems and load deviations. Fixed side plates allow quick rope installation and easy system setup.

Full description

Description

Petzl Fixe Pulley



Key Features

  • Fixed side plates for quick and easy installation
  • 21mm diameter sheave mounted on self-lubricating bushings
  • Strength – 5kN Working Load Limit (WLL)
  • Efficiency – 71%
  • Breaking Load (MBS): 23kN



Rope Compatibility

  • 6mm to 13mm


Cleaning

Wash and rinse in clean water using pure soap.

+30°C / 86°F (max.)

Drying

Dry in a well-ventilated place away from direct sources of heat or sunlight.

+30°C / 86°F (max.)





Manufacturer's Downloads



Specification

Single Pulley

Pulley Type
Single
Pulleys Cheek
Fixed Cheek
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
21-30kN
Pulley Efficiency
Bushings
Sheave Diameter (mm)
21mm
Pulley Efficiency
71%
Minimum Rope Diameter (mm)
6mm
Maximum Rope Diameter (mm)
13mm
Working Load Limit (kN)
5kN
Max Breaking Strength (kN)
23kN

General

Industrial or Sport Use
Industrial
Colour
Black, Yellow,
Material
Aluminium Body, Stainless Steel Sheave,
Conformity
CE EN12278
UIAA
Weight (g)
98g
Operating Temperature from
-40°C / -40°F
Operating Temperature to
+80°C / +176°F
Lifetime
Unlimited
Guarantee
3 years
