Petzl 11mm Aluminium Am'D Ball Lock Karabiner

Code: M34ABL
£20.48
(inc. VAT)

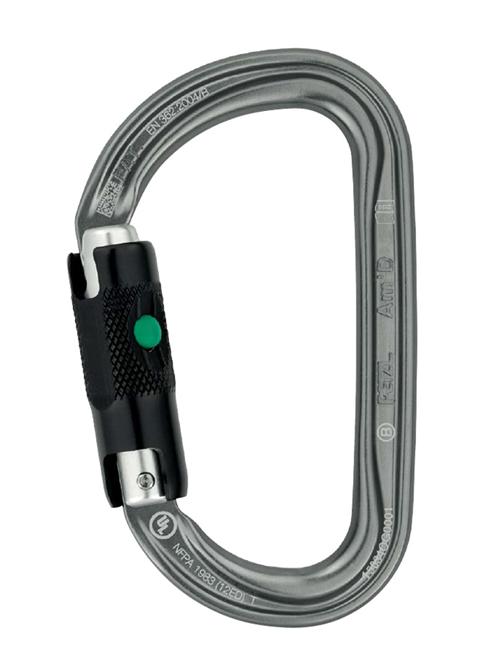

Petzl 11mm Aluminium Am'D Large D Ball Lock Karabiner

Petzl 11mm Aluminium Alloy Am'D Large D Ball Lock Karabiner Requires the operator to press the ball then twist to open.

Full description

Description

Petzl 11mm Aluminium Am'D Large D Ball Lock Karabiner

The shape and size of this karabiner makes it great for most uses, from connecting a belay device to your harness or as a connector at the end of a lanyard. The D shape makes it one of the strongest and lightest locking karabiners Petzl makes.

Key Features

  • D-shape has the highest strength to weight ratio of all karabiner designs.
  • Keylock system.

Available with manual locking system (Screw Lock) or auto-locking systems (Ball Lock, Triact Lock).

Perfectly suited for use with belay devices due to its symmetric shape on both ends of the karabiner.

Compatible with the captiv connector positioning bar.
Please click here for the Captiv

Karabiner Diagram

A = 113mm

B = 65mm

C = 25mm

Ø = 11mm





Manufacturer's Downloads



Specification

Karabiner

Gate Opening
Locking
Material Diameter
11mm
Length (mm)
113mm
Width (mm)
65mm
Shape
Offset D
Gate Type
Ball Lock
Nose Type
Clean
Major Axis Strength kN
27kN
Minor Axis Strength kN
8kN
Open Gate Strength kN
7kN
Gate Opening (mm)
25mm

General

Industrial or Sport Use
Industrial
Material
Aluminium
Conformity
CE EN362
CE EN12275
NFPA 1983 Technical Use
EAC
Weight (g)
75g
