Lyon Obelisk Quad-Pod

Code:
From £2,194.01
(inc. VAT)

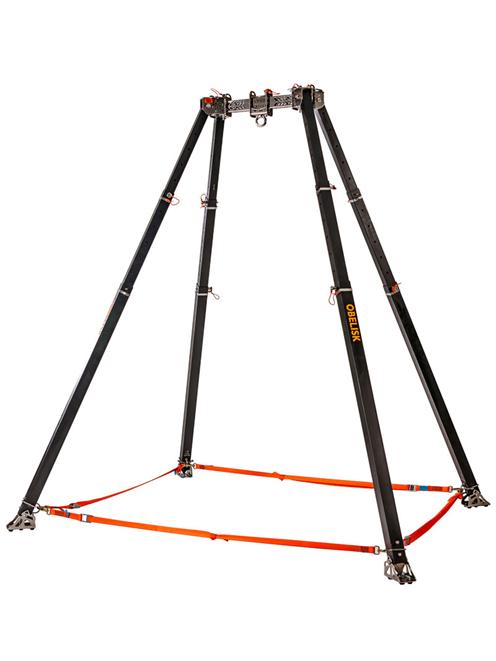

Lyon Obelisk Quadpod

The Lyon Obelisk Quad-Pod with adaptable beam head section provides more stability than a conventional tripod. With a 2.2m clearance from the swivel attachment/s to ground level, it offers great clearance. It has also been tested in it's different configurations and will work extremely well for all emergency service teams.

Full description

Description

Lyon Obelisk Quadpod

The Lyon Obelisk Quadpod with adaptable beam head section provides more stability than a conventional tripod. With a 2.2m clearance from the swivel attachment/s to ground level, it offers great clearance. It has also been tested in it's different configurations and will work extremely well for all emergency service teams.

When ordering 1 x Lyon Obelisk Quadpod you will recieve as standard:

  • Two pairs of legs.
  • 0.5m top beam.
  • 1 x carriage (movable anchor point) for top beam.
  • 4 x straps

Additional extras:

  • Extra Carriage for top beam (LPP0003-CARRIAGE).
  • Obelisk Transport Bag (LPP0003-BAG).

Spare parts available on request:

  • 0.3m Top beam (LPP0003-BEAM0.3M).
  • 0.5m Top beam (LPP0003-BEAM0.5M).
  • 50mm Pin (LPP0003-PIN50).
  • 80mm Pin (LPP0003-PIN80).
  • Strap set (4pcs) (LPP0003-STRAPS).

Designed and manufactured by Lyon specifically for emergency service work, the Obelisk incorporates a wealth of features that make it ideal for the varied and challenging situations teams have to operate in.

The Obelisk is intended to provide an elevated anchor point(s) for combined loads not exceeding 272kg, within the limits and restrictions defined by the user instructions.

Obelisk Quad Pod Diagram



Diagram of Obelisk parts

  1. Top Beam.
  2. Carriage(s).
  3. Swivel Anchor Point.
  4. Locking Pin.
  5. Leg Carrier.
  6. Guy Line Attachment Point.
  7. Leg section (top/middle/bottom).
  8. Foot.
  9. Leg Restraint Strap Attachment Point.
  10. Leg Restraint Strap.
  11. Foot lock



Key Features

  • Adjustable width cross-beam allows wider loads to pass through the frame.
  • Multi position main anchor points with swivel eyes.
  • Push-pin locking on cross-beam and legs for no-tools adjustment.
  • Swivel feet change between load spreading surface and hardened spike.
  • Dedicated guying points for additional stability.
  • Stainless steel and aluminium alloy construction combines strength with lightness.
  • Max height under swivel anchor point: 2200mm
  • Max width with long cross-beam: 400mm (we are also working on a longer 1m beam).
  • Weight Including all accessories: 22Kg.
  • Optional dividable bag splits into two for easier handling, easier transport and increased storage options.
  • All parts are replaceable and available as spares.
  • BS EN795:2012 Type B, and PD CEN/TS 16415:2013 Type B.
  • Made in the UK by Lyon Equipment.

Specifications

  • Product code: LPP0003.
  • Standards: EN795:2012,PD CEN/TS 16415:2013.
  • Dimentions: 1500mm x 1800mm x 2200mm.
  • Weight: 22Kg.
  • Packed weight and dimensions for delivery 136cm x 21cm x 23cm at around 29kg





Manufacturer's Downloads



Specification

Category

Category
Tripods / Quadpods

Tripods / Quadpods

Tripods / Quadpods
Quadpods

General

Industrial or Sport Use
Industrial
Conformity
CE EN795
