Lyon Anchora - Anchor Device

Code: LPP0002
£105.00
(inc. VAT)

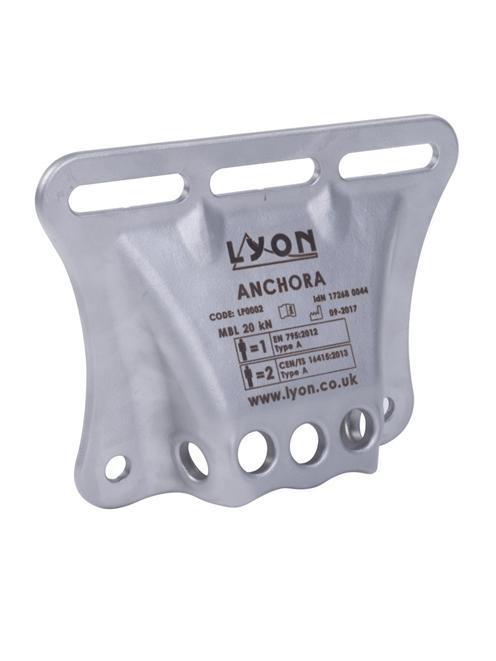

Lyon Anchora

The Lyon Anchora is an anchor device that is designed with climbing walls and technical training centres in mind. The Anchora has five attachment points designed to allow different connecting and loading configurations.

Full description

Description

Lyon Anchora

The Lyon Anchora offers five attachment points which are designed to allow different connecting and loading configurations. The attachment points provide a smooth bearing surface minimising wear on any connectors.

The design allows positioning of the connectors and rope away from the structure, thereby prolonging the life of rope, connectors and surface of the structure.

Connectors can be replaced independently of the Anchora, reducing ongoing costs. Large connectors can be held captive once the Anchora is fitted, removing the need for captive bar versions.

The Anchora has been independently tested and meets the requirements of EN 795:2012 Type A and CEN/TS 16415:2013 Type A for two persons.

Materials:

The Anchora is cast from marine grade stainless steel with no welded joints or moving parts.

* Connectors not supplied

AnchoraAnchora Side View





Manufacturer's Downloads



Specification

Bolts & Hanger Plates

Anchors Type
Hanger Plate
Breaking Strength kN
20kN

General

Industrial or Sport Use
Sport
Conformity
CE EN795 Class A
CEN/TS 16415: 2013 TYPE A
