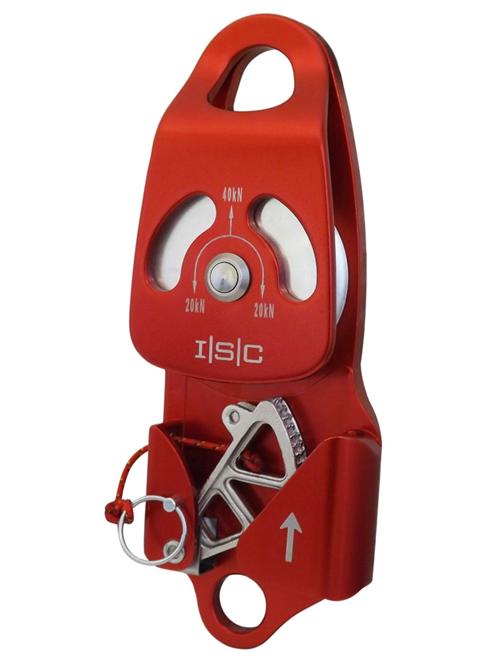

ISC Single Progress Capture Pulley Hauler

Code:
From £135.55
(inc. VAT)

ISC Single Progress Capture Pulley

Extended lead-times may apply to this item. Please call for urgent orders.

ISC Single Progress Capture Pulleys are hauler pulleys with a 40kN Breaking Load and incorporate a toothed cam which when engaged will automatically capture the load whilst lifting/pulling a load or tensioning a line.

Full description

Description

ISC Single Progress Capture Pulley

Extended lead-times may apply to this item. Please call for urgent orders.

Single pulley with locking cam (which can be pinned to an open position when not required). When engaged, this cam grabs the rope so that the rope can only move one way (perfect for when lifting a load).

Available with non-locking or locking pulley wheel. In the locking version the pulley wheel only turns one way which provides more friction when lowering a load and thus making the load more manageable. The non-locking version is made with bushes, the locking with bearings (giving it slightly better efficiency).





Manufacturer's Downloads



Specification

Pulley

Pulley Type
Single
Pulleys Cheek
Swing Cheek
Pulleys Additional Features
Progress Capture / One-way Lock
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
31-40kN
Pulley Efficiency
Bearing / High Efficiency
Pulley Locking
Non Locking, One Way Locking,
Minimum Rope Diameter (mm)
10mm
Maximum Rope Diameter (mm)
13mm
Max Breaking Strength (kN)
40kN

General

Industrial or Sport Use
Industrial
Colour
Black, Red,
Conformity
CE EN12278
Weight (g)
663g
