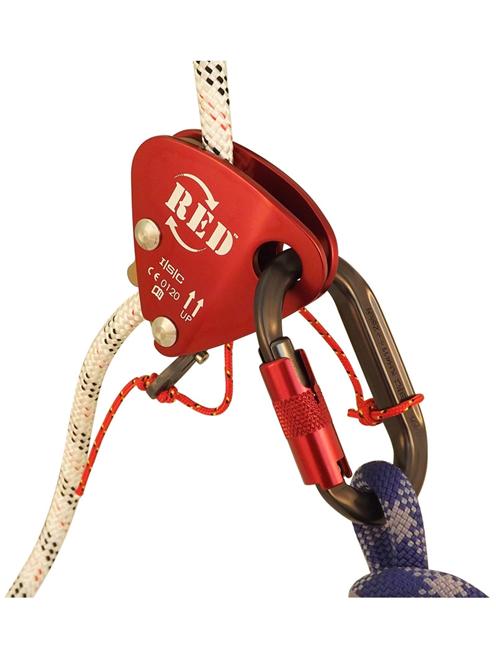

ISC RED Back-up Device - Off-shore Approved

Code: RP892D1
£85.30
(inc. VAT)

ISC RED Back-up Device - Off-shore Approved Version (Choice of two 'Popper' positions and comes complete with extra tail with a loop on cord to reduce the risk of dropping). For use with a cowstail of up to 800mm (with karabiners) from the central waist attachment point of a harness.

Full description

Description

ISC RED Back-up Device - Off-shore version

This Off-shore version has been tailored to the requirements of the Aberdeen Off-shore Group and  differs from the limited edition black in that the cam has been drilled with two holes allowing a choice of popper position (the 'popper' comes in the lower postion on the cam allowing the device to be towed more easily but this does potentially mean that the popper is harder to 'pop'). It also comes complete with extra tail with a loop on the non-towing end of the cord which can be attached to the karabiner securing it to the cowstail and is designed to reduce the risk of dropping). The ISC Red is primarily for use with a cowstail of up to 800mm (with karabiners) from the central waist attachment point of a harness, but can be attached to either the sternal or dorsal attachment points of a harness.

After ongoing discussions regarding the karabiner loop attachment point, and specifically the related knot, it has been agreed to change the triple fisherman knot (current) to an overhand on a bight.

The ISC red back up device has non-aggressive cams and a positively locking spring which means the device is 'self-parking' rather than 'self-tailing' like many rope grabs (it stays in position rather than drifting down the rope!).

  • Using 'Rotational Braking' the more the device rotates clockwise the more friction is built up and this provides an automatic brake even in the event of a sudden pull on the cowstail (such as if there is a mainline failure in Rope Access).
  • The Popper version of the device is a breakaway clip which provides a secondary attachment point for the tow cord and allows the user to tow the device directly downwards without unintentionally engaging the device's rotational braking system. However when the cord is pulled in a panic situation, the Popper clip releases under the force and the cord then works in conjunction with the rotational movement of the braking system.

Tested for a 2 person rescue - In rescue (up to 240Kg load), it is critical that the user limits the maximum fall distances to 300mm on 10.5mm ropes and 800mm on 11mm ropes (in theory if there was a potential for a fall factor of 2 then the maximum lanyard lengths should be 150mm on 10.5mm ropes and 400mm on 11mm - Longer lanyards up to the maximum stated are permissible if the user limits the fall distances to those already mentioned above).





Manufacturer's Downloads



Specification

Backup Device

Rope or Wire Usage
Rope - Rope Access
Rope Compatibility
10.5mm -11mm
Rated Capacity
240kg

General

Industrial or Sport Use
Industrial
Material
Aluminium
Conformity
CE EN1891
CE EN12841
Weight (g)
210g
