Harken Wingman Mechanical Advantage System
Harken Wingman Mechanical Advantage System
The Harken Wingman is a high efficiency ball bearing pulley system that can be used as a 4:1 or 5:1 mechanical advantage (flip orientation to rig either way). The Wingman Can be released smoothly under full load with one hand. (Please see video below)
Fast Delivery
Deliveries
Coronavirus latest: We are still open for business! Please click here for our full statement on our operations.
We pride ourselves on our excellent service and aim to despatch all orders promptly. If you order before 3pm Monday to Friday we will try to send it out that day, for next working day delivery. Orders:
- placed after 3pm Monday to Thursday will be processed the next day
- placed after 3pm on a Friday or at a weekend or on a Bank Holiday will be processed on the next working day
- Orders to the Highlands, Islands and Out of Area may be a two-day delivery and overseas will be longer
Please call us for time-critical orders, so we can process the order as a matter of urgency and confirm the delivery schedule.
All goods are subject to availability. If we can't supply your goods within 30 days from the date of order, we will inform you immediately and let you know the expected delivery date.
Courier service
If you opt for a courier delivery, you will receive an email or text on the day we despatch your order, informing you that it is enroute. On the morning of delivery, at around 07:30, you will receive a further email or text giving you a 1-hour delivery time slot. Please therefore ensure that you have given us the correct mobile number and email address.
Couriers are extremely busy during Christmas and the sales, so please allow extra time.
We will not be held liable for any consequential loss caused by late or failed deliveries.
Timed deliveries / Saturday & Sunday deliveries
We can arrange timed deliveries for:
Weekdays:
- pre-10:30am
- pre-12 (midday)
Weekends:
- Saturday pre-10:30am
- Saturday pre-12 (midday)
- Sunday (anytime)
Some of the timed delivery options are available via the website, for others including a Sunday delivery, please call the office for a confirmed price and to arrange the alternate delivery.
Important Note:
Timed deliveries are subject to stock availability (we will contact you if any of your order is not in stock, so you can confirm if you would like us to split the delivery) and must be placed by 3pm Monday to Friday. Please call us if it's after 3pm as we may still be able to catch our couriers.
Description

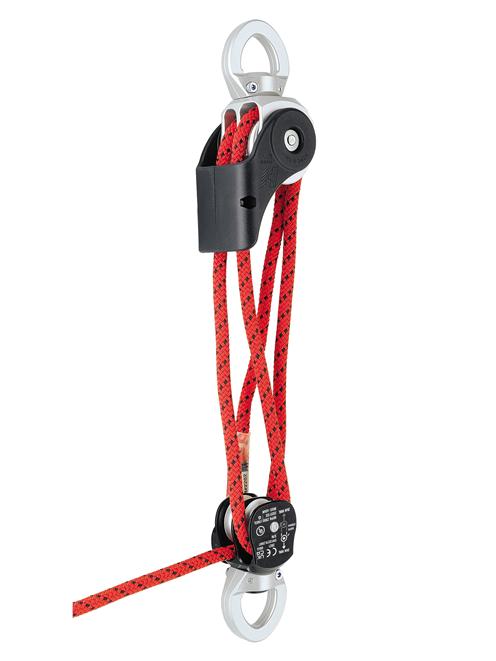

Harken Wingman Mechanical Advantage System
Harken’s new Wingman applies new design and technology to achieve more from a compact personal mechanical advantage system. Wingman’s innovative design makes it among the first offerings in this category to achieve internal progress capture mechanically within the unit rather than relying on prusiks to achieve that externally. Wingman combines a ratcheting sheave to stop the rope with a composite handle or wing the operator can open and close under load for a well-modulated ‘fine-tuned’ release. Under full load even with the sheaves pulled completely together, the system may be released quite easily--with full control using one hand on the wing and the other tending the line. The Wingman has a minimum overall length of just 8” which means more clearance under a tripod and more throw during a pick-off. The device is also ideal for creating adjustable directionals, work positioning and much more. It may be configured as a 4:1 or 5:1 mechanical advantage system. These revolutionary features plus ball bearings within the sheaves that maximize efficiency for raising and lowering loads of up to 681lbs, makes Wingman a simple tool you will always want at your side. NFPA "G" and EN 12278 certifications are pending.
Key Features
- High efficiency ball bearing pulleys, internal ratchet, sheaves engineered to maximize rope holding
- 4:1 or 5:1 mechanical advantage (flip orientation to rig either way)
- Can be released smoothly under full load with one hand
- Eccentric progress capture = no prusiks
- Machined aluminium swivel connection points
Manufacturer's Downloads
Specification
Pulley
|
Pulley Type
|
Pulley Systems
|
|---|---|
|
Pulleys Cheek
|
Fixed Cheek
|
|
Pulley Wheel Material
|
Aluminium
|
|
Pulley Rating (Breaking Load) kN
|
41-50kN
|
|
Pulley Efficiency
|
Bearing / High Efficiency
|
|
Pulley Locking
|
One Way Locking
|
|
Rescue Kits
|
Casualty Pulley System
|
|
Length
|
3m Working Length
|
General
|
Industrial or Sport Use
|
Industrial
|
|---|---|
|
Weight (g)
|
1400g
|
