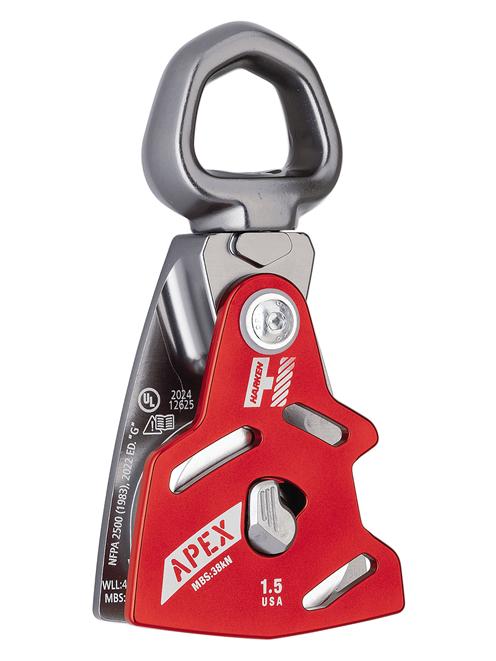

Harken Apex 1.5 Single Pulley with Swivel
Harken Apex 1.5 Single with Swivel
The Apex Swivel Pulley offers both easy one-handed operation and unmatched security. The Apex is a mid-line attachable pulley that secures the rope using a low-profile, patented, triple-action lock mechanism that can easily be opened with one hand. This lock is operated by three distinct actions: pivot the lock button, depress it, then swing open the side plate.
Fast Delivery
Deliveries
Coronavirus latest: We are still open for business! Please click here for our full statement on our operations.
We pride ourselves on our excellent service and aim to despatch all orders promptly. If you order before 3pm Monday to Friday we will try to send it out that day, for next working day delivery. Orders:
- placed after 3pm Monday to Thursday will be processed the next day
- placed after 3pm on a Friday or at a weekend or on a Bank Holiday will be processed on the next working day
- Orders to the Highlands, Islands and Out of Area may be a two-day delivery and overseas will be longer
Please call us for time-critical orders, so we can process the order as a matter of urgency and confirm the delivery schedule.
All goods are subject to availability. If we can't supply your goods within 30 days from the date of order, we will inform you immediately and let you know the expected delivery date.
Courier service
If you opt for a courier delivery, you will receive an email or text on the day we despatch your order, informing you that it is enroute. On the morning of delivery, at around 07:30, you will receive a further email or text giving you a 1-hour delivery time slot. Please therefore ensure that you have given us the correct mobile number and email address.
Couriers are extremely busy during Christmas and the sales, so please allow extra time.
We will not be held liable for any consequential loss caused by late or failed deliveries.
Timed deliveries / Saturday & Sunday deliveries
We can arrange timed deliveries for:
Weekdays:
- pre-10:30am
- pre-12 (midday)
Weekends:
- Saturday pre-10:30am
- Saturday pre-12 (midday)
- Sunday (anytime)
Some of the timed delivery options are available via the website, for others including a Sunday delivery, please call the office for a confirmed price and to arrange the alternate delivery.
Important Note:
Timed deliveries are subject to stock availability (we will contact you if any of your order is not in stock, so you can confirm if you would like us to split the delivery) and must be placed by 3pm Monday to Friday. Please call us if it's after 3pm as we may still be able to catch our couriers.
Description
Harken Apex 1.5 Single with Swivel
The operation is intuitive and ergonomic. The Apex features symmetrical sideplates which are optimized for integration with prusik-based progress capture systems. This streamlines system set-up and minimizes the possibility of mis-rigging. The beautifully forged swivel eye was designed to accommodate up to three karabiners so you can use the Apex in virtually any rigging scenario. It is also soft-goods-compatible for situations where you want to eliminate the carabiner altogether. Simply closing the sideplate re-engages the lock mechanism and solidly secures the rope. The swivel eye’s versatility allows it to excel in a wide range of rigging configurations. The U.S. made Apex Pulley line represents the new standard for rescue, rope access, or arborism.
Manufacturer's Downloads
Specification
Pulley
Pulley Type | Single |
|---|---|
Pulleys Cheek | Swing Cheek |
Pulleys Additional Features | Integrated Swivel |
Pulley Wheel Material | Aluminium |
Pulley Rating (Breaking Load) kN | 31-40kN |
Sheave Diameter (mm) | 38mm |
Maximum Rope Diameter (mm) | 13mm |
Working Load Limit (kN) | 10kN |
Max Breaking Strength (kN) | 38kN |
General
Industrial or Sport Use | Industrial |
|---|---|
Colour | Red |
Material | Aluminium Body, Aluminium Sheave, |
Dimensions | 74mm x 150mm |
Conformity | CE EN12278 |
Weight (g) | 306g |
Wind Farm Kit | Pulleys |
