DMM Edgehog Mono Rope Protector

Code: EH100
£94.99
(inc. VAT)

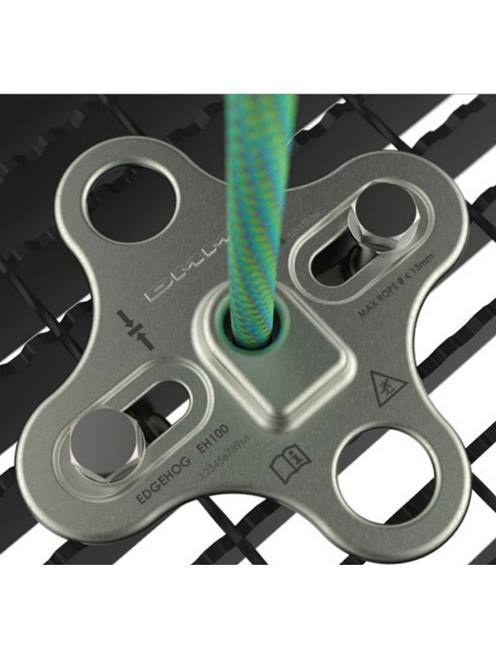

DMM Edgehog Mono

The DMM Edgehog Mono is a single rope protector suitable for protecting a rope which needs to be threaded through grating. It is a light compact solution for grating edge protection.

Full description

Description

DMM Edgehog Mono

The DMM Edgehog Mono is designed for use in rope access. The Edgehog Mono fits through deck grating (commonly known as Kennedy Grating) which is found in many industrial situations such as oil rigs, chemical plants and refineries.

The DMM Edgehog Mono greatly improves rope protection against sharp edges when a rope is fed through gratings. By securely bolting to the grating it enables the rope to be rigged from above to allow rope access work to be safely performed below deck.

Key Features

  • Marine grade stainless steel for enhanced corrosion.
  • resistance in offshore environments.
  • Low profile to minimise trip hazard.
  • Hex bolts provided for securing to grating.
  • Maximum rope diameter: 13mm.
  • 17mm spanner available.

Click here for the DMM double rope protector





Manufacturer's Downloads



Specification

Grate Rope Protection

Protection Against
Abrasion Protection
Maximum Gate Depth
45mm
Accommodates
One Rope
Maximum Rope Diameter
13mm
Attachment Type
Bolts

General

Industrial or Sport Use
Industrial
Material
Stainless Steel
Colour
Silver
Dimensions
70mm x 150mm x 150mm
Weight (g)
667g
