Crowcon Tetra 4 Gas Detector

Crowcon
Code: CRT4-HOCA-CRD
£492.00
(inc. VAT)

H2S, O2,CO, LEL% C/W Charging Cradle And Calibrated

The T4 portable 4-in-1 gas detector provides effective protection against 4 common gas hazards: carbon monoxide, hydrogen sulphide, flammable gases and oxygen depletion. The T4 multi gas detector now comes with improved detection of pentane, hexane and other long chain hydrocarbons.

Offering you compliance, robustness and low cost of ownership in a simple to use solution.

Full description

Description

Overview

T4 is Crowcon’s personal protection solution for detecting the four most common gas hazards:

  • carbon monoxide CO
  • hydrogen sulphide H2S
  • flammable gases LEL
  • oxygen depletion O2

Offering you compliance, robustness and low cost of ownership in a simple to use solution. The large single button and intuitive menu system allows T4 to be operated wearing gloves with minimal training.

Crowcon’s toughest portable yet, T4 is durable by design and includes an integrated rubber boot as standard. An optional clip-on filter cover, which is easily removed and replaced, ensures sensors are protected in the dirtiest environments. Drop tested to 4m and well protected from water ingress through IP65 and IP67 certification, T4 allows uninterrupted working in the most demanding environments.

Now with improved detection of pentane, hexane and other long chain hydrocarbons.

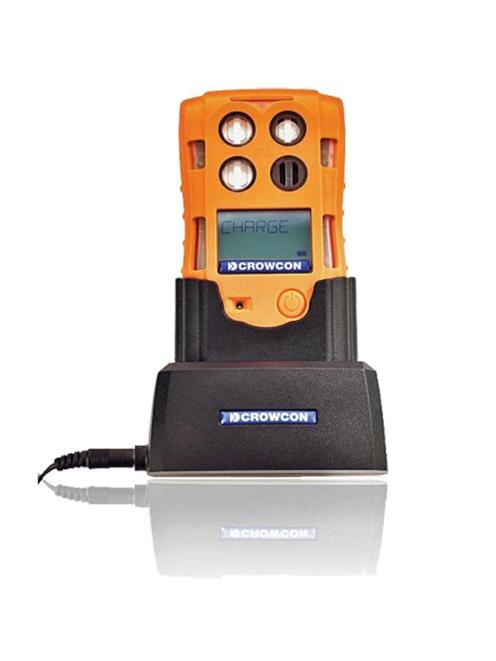

Comes with charging cradle and the detector will be calibrated.

T4 contains a wide range of powerful features to make everyday use easier and safer:

TWA Resume

Unique to T4, the TWA Resume function ensures toxic gas exposure is calculated accurately over an entire shift, even if T4 is switched off for a break or during travel to another site.

When most portable detectors are turned off, the algorithm that assesses TWA exposure assumes that it’s the end of the shift. When turned on again, these detectors act as if it is a new work shift, ignoring all previous measurements. The TWA Resume function however, provides the option to include previous measurements from within the correct time frame.

18 hour battery

Li-Ion rechargable battery with a battery life of 18 hours, T4 allows multiple or longer shifts to be worked between recharging. Recharging time is 5.5 hours.

Positive Safety

Crowcon’s visual ‘traffic light’ indication, provides constant visual assurance that T4 is operating soundly and conforms to site bump test & calibration policy. The bright green and red Positive Safety LEDs are visible to all and offer a quick, simple and comprehensive indication of monitor status to both the user and others around them.



Manufacturer's Downloads

Specification

Type of gas detector
4X Gas Detector
Weight
282g
Ingress Protection Rating
IP67
Dimensions
135 x 80 x 35mm
Gas Type(s)
H2S Hydrogen Sulphide 0-100ppm, LEL Lower Explosive Limit 0-100%, CO Carbon Monoxide 0-1000ppm, O2 Oxygen 0-30%,
Compliance
ATEX: II 2 G Ex db ia IIC T4 Gb Tamb -20°C to +55°C
Operating Range
-20C to 55C
Relative Humidity
10-95% Non-condensing
Event Logging
130 hours of event logging; Up to 3500 events
Warranty
2 years
Confined Space
Yes
Type of gas detector
Multi Gas
