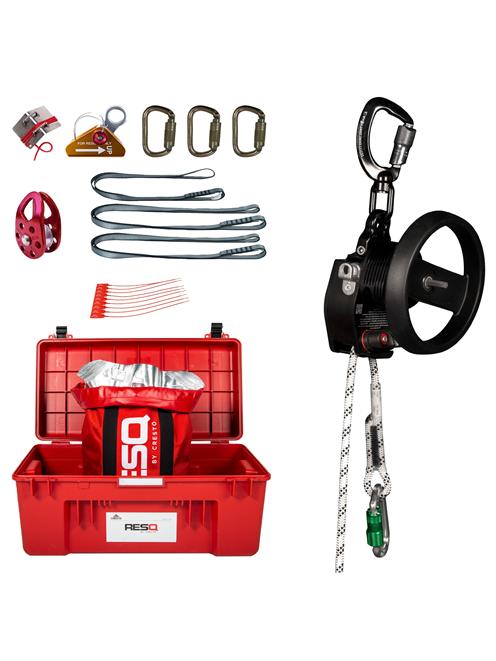

Cresto RED Pro III, Box Rescue and Evacuation Device

Product code:
Call for price

Cresto Red Pro III Box Rescue and Evacuation Device

RED Pro III is the latest version of RED Pro with a refined and simplified lifting and locking function for rescue. This version is equipped with a built-in torque limiter in the hand wheel. Used to lift a person so that you can release any attenuator lines after a fall and then evacuate the distressed person to a safe surface.

During descent/evacuation, the centrifugal brake is automatically engaged and regulates to a constant descent speed for a simple and safe descent, from for example cranes, wind turbines, mobile work platforms, and industrial buildings. The downhill speed is up to 2m / s depending on the weight of the person (s).

Full description

Description

Cresto Red Pro III Box Rescue and Evacuation Device

RED Pro III is the latest version of RED Pro with a refined and simplified lifting and locking function for rescue. This version is equipped with a built-in torque limiter in the hand wheel. Used to lift a person so that you can release any attenuator lines after a fall and then evacuate the distressed person to a safe surface.

During descent/evacuation, the centrifugal brake is automatically engaged and regulates to a constant descent speed for a simple and safe descent, from for example cranes, wind turbines, mobile work platforms, and industrial buildings. The downhill speed is up to 2m / s depending on the weight of the person (s).

Technical Information

Material device: Casted Aluminium
Function: Automatic descent device
Mechanics:Centrifugual break
Lifting mechanics:Hand wheel with Torque limiter, Gear Ratio 1:10
Rope:Kernmantle rope 32-braided, 9,6 mm. Core and sheet of Polyamid
Rope Weight:61g/m
Attaching connector, device:Steel Karabiner with double action gate <30kN, gate strength <16kN.
Product kit:Device: 2,2kg
Kit:Vaccuum packed in bag 9450 and Storage box 9449 incl. Rescue Accessory Pac.
Standards:EN341:2011 cl.A & B; EN1496:2017; ANSI Z359.4-2013; CSA-Z259.2.3-12.
Declaration of Conformity:PPE Regulation 2016/425.
Lifespan rope:10 years lifespan maximum working life.
Max. load:cl. A 100 kg, cl. B 200 kg.
Min. load:50kg.
Descent speed:0.5-2m/s.
Max. rope length:160m.
Max. descent distance:5x160m (200 kg).
Max. Hoist:136kg 12m.
Working temperatures:-40-(+50)°C.
Inspection requirements:Yearly inspection Vaccuum.
Identification:Serial Number.
RFID:Yes.





Manufacturer's Downloads

Specification

Rescue Kit

Rescue Kits
Rescue Kits
Rope Length
50m, 150m, 75m, 125m,

General

Industrial or Sport Use
Industrial
