Checkmate Xcalibre Fall Arrest Block With Recovery

Code:
From £1,003.00
RRP £1,180.00
Save £177.00
(inc. VAT)

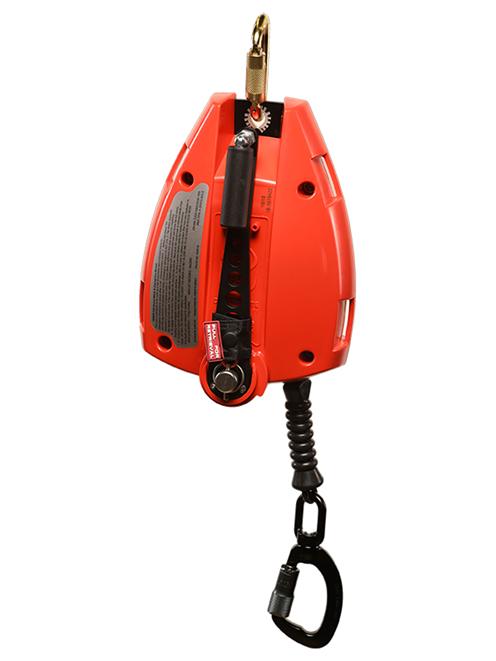

Checkmate Xcalibre Fall Arrest Block With Recovery

The FABX2R functions as a standard Fall Arrest Block, but in the event of a fall, the rewind/rescue mechanism can be engaged to raise and/or lower a fallen worker. Available with galvanised or stainless steel cable, or fibre rope made with Dyneema® up to 18m in length.

Full description

Description

Checkmate Xcalibre Fall Arrest Block With Recovery

The Checkmate FABX2R Fall Arrest Recovery Block functions as a standard Fall Arrest Block, but in the event of a fall the rewind/rescue mechanism can be engaged to raise and/or lower a fallen worker.

The FABX2R is supplied with a deployment tag. Rip off security tag to show if the rescue function has been engaged therefore a service/inspection will be required

Winch function works in both directions without any need to switch mechanism,to raise or lower.


Key Features

  • Lifeline Type:
    • Stainless steel - 15m
    • Galvanised Steel - 18m
    • Fibre rope made with Dyneema® - 18m
  • User Weight:  141kg (310lbs)
  • Capacity: Up to 18 m (60ft) [NB Stainless Steel option is 15m (50ft)]


Construction

  • External Housings: PC/ABS High strength and rigidity UV stabilised
  • Chassis: Hot Rolled Steel, Zinc plated black
  • Pawls & Spindles: Stainless steel, hardened
  • Shaft: Al. Alloy T6 Hard anodised
  • Swivel Load Indicating Hook: Al. alloy or steel with integrated fall indicator

  • Manufacturer's Downloads



    Specification

    Backup Device

    Length
    15m, 18m,
    Lifeline Type
    Stainless steel, Galvanised Steel, Fibre rope made with Dyneema®,

    General

    Industrial or Sport Use
    Industrial
    Conformity
    CE EN1496
    CE EN360
