Checkmate Xcalibre Fall Arrest Block FABXLR

Code:
From £1,337.15
RRP £1,573.12
Save £235.97
(inc. VAT)

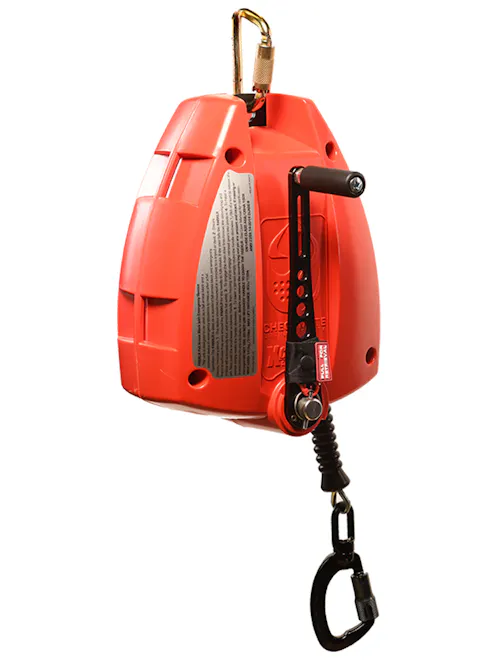

Checkmate Xcalibre Fall Arrest Block

The FABXLR functions as a standard SRL, but in the event of a fall, the rewind/rescue mechanism can be engaged to raise and/or lower a fallen worker. Available with galvanised or stainless steel cable, or fibre rope made with Dyneema® up to 130ft/40m in length.

Full description

Description

Checkmate Xcalibre Fall Arrest Block

The Checkmate FABXLR Fall Arrest Recovery Block functions as a standard Fall Arrest Block, but in the event of a fall the rewind/rescue mechanism can be engaged to raise and/or lower a fallen worker.

The FABXLR is supplied with a deployment tag. Rip off security tag to show if the rescue function has been engaged therefore a service/inspection will be required

Winch function works in both directions without any need to switch mechanism,to raise or lower.


Key Features

  • Lifeline Type:
    • Stainless steel max 35m (115ft)
    • Galvanised Steel max 40m (130ft)
    • Fibre rope made with Dyneema®; max 40m (130ft)
  • User Weight:  141kg (310lbs)


Construction

  • External Housings: PC/ABS High strength and rigidity UV stabilised
  • Shaft: T6 Aluminium hard anodised
  • Chassis: Hot Rolled Steel powder coated
  • Pawls & Spindles: Stainless steel, hardened
  • Bearings: Polyamide with PTFE Polytetrafluoroethene
  • Swivel Load Indicating Hook: Al. alloy or steel with integrated fall indicator

  • Manufacturer's Downloads



    Specification

    Backup Device

    Length
    30m, 40m, 35m,
    Lifeline Type
    Stainless steel, Galvanised Steel, Fibre rope made with Dyneema®,

    General

    Industrial or Sport Use
    Industrial
    Conformity
    CE EN1496
    CE EN360
