Beal Transf'Air 2 Pulley

Code: BMP2
£38.00
(inc. VAT)

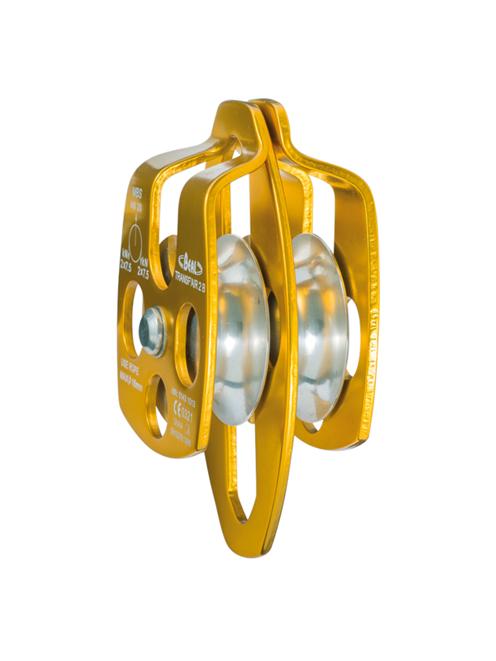

Beal Transf' Air 2 Pulley

Large double pulley with swivelling side plate well suited for use in pulley systems. Stainless steel axle and washer. The sheave is mounted onto a bronze collar to promote a good level of efficiency.

Full description

Description

Beal Transf' Air 2 Pulley

Large double pulley with swivelling side plate well suited for use in pulley systems. Stainless steel axle and washer. The sheave is mounted onto a bronze collar to promote a good level of efficiency.

Ideal for intensive use with large diameters ropes.

Key Features

  • Stainless steel axle and washers.
  • Sheave is mounted onto a bronze collar to promote a good level of efficiency.
  • Individual identification number.
  • Swivelling side plate.





Manufacturer's Downloads

Specification

Pulley

Pulley Type
Double / Twin
Pulleys Cheek
Swing Cheek
Pulley Rating (Breaking Load) kN
21-30kN
Pulley Efficiency
Bushings
Maximum Rope Diameter (mm)
16mm
Max Breaking Strength (kN)
30kN

General

Industrial or Sport Use
Industrial
Colour
Yellow
Dimensions
83mm x 150mm
Conformity
CE EN12278
Weight (g)
475g
