Beal Transf'Air 1B Pulley

Code: BMP1B
£25.60
RRP £26.95
Save £1.35
(inc. VAT)

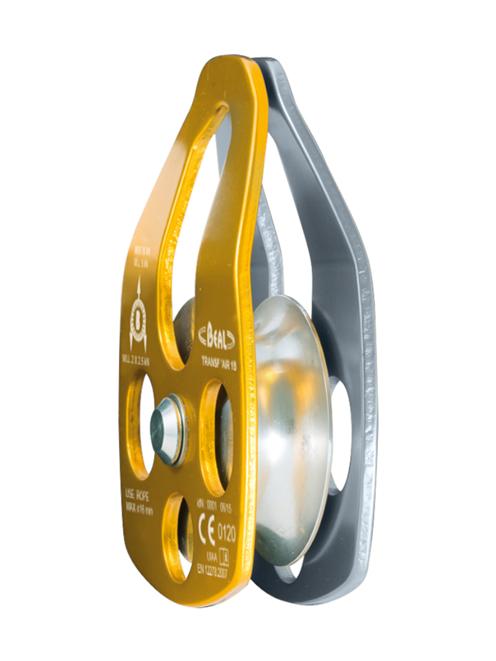

Beal Transf'Air 1B Single Pulley

Highly efficient single pulley with swivelling side plate and ball bearing mounted sheave. Its swivelling action allows the pulley to be positioned anywhere along the rope, whilst the ball bearings ensure maximum efficiency and durability. Ideal for intensive use with large rope diameters. Stainless steel axle and washers.

Full description

Description

Beal Transf'Air 1B Single Pulley

Highly efficient single pulley with swivelling side plate and ball bearing mounted sheave. Its swivelling action allows the pulley to be positioned anywhere along the rope, whilst the ball bearings ensure maximum efficiency and durability. Ideal for intensive use with large rope diameters. Stainless steel axle and washers.

Key Features

  • Ball bearings for high efficiency.
  • Individual identification number.
  • Swivelling side plate.





Manufacturer's Downloads

Specification

Single Pulley

Pulley Type
Single
Pulleys Cheek
Swing Cheek
Pulley Rating (Breaking Load) kN
21-30kN
Pulley Efficiency
Bearing / High Efficiency
Maximum Rope Diameter (mm)
16mm
Max Breaking Strength (kN)
30kN

General

Industrial or Sport Use
Industrial
Colour
Yellow
Dimensions
83mm x 118mm
Conformity
CE EN12278
Weight (g)
280g
