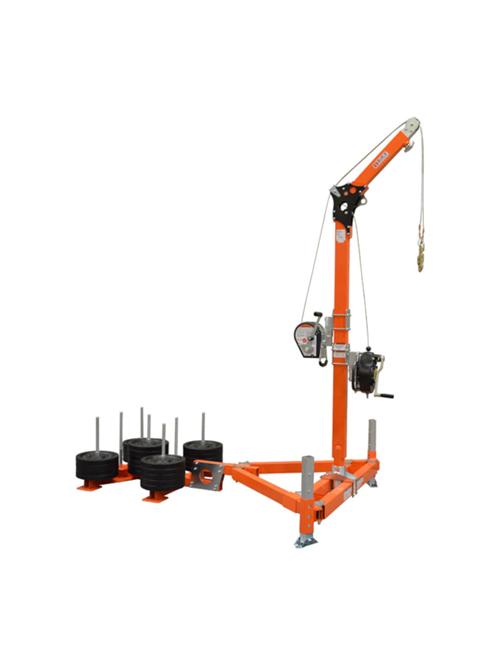

Abtech Counterweight Base Kit

Abtech
Code: 30073KIT
£10,197.60
(inc. VAT)

30073KIT - COUNTERWEIGHT BASE KIT

Counterweight Base Kit c/w 30105, 30109, 60005, AB15RT and Base(30073)

Full description

Description

30073KIT - COUNTERWEIGHT BASE KIT

Counterweight Base Kit c/w 30105, 30109, 60005, AB15RT and Brackets(30073)

30105 - Large Upper Davit

Large Upper Davit, with an adjustable offset.

To be used with a Lower Davit and Base

  • Product Code: 30105
  • Conformance: Certified to EN795 CLASS B
  • Weight: 12kg
  • Reach: 28” (711mm)
  • Height: 66” (1676mm)

30109 - Large Lower Davit

To be used with an Upper Mast Davit and Base

  • Product Code: 30109
  • Conformance: Certified to EN795 CLASS B
  • Weight: 8kg
  • Height: 52” (1321mm)

60005 - 30m Man Riding Winch

30m Man Riding Winch designed for use in a wide variety of confined space, work positioning, rescue and fall protection applications.

The winch may also be used in various material handling applications within the prescribed working load limits.

  • Product Code: 60005
  • Conformance: BS EN 795, BS EN 1496
  • Mechanical Advantage: 11:1
  • Average Cranking Force: 30LBS (133N)
  • Secondary Brake Stopping Distance: Maximum of 24” (610mm)
  • Max User Weight (single reeved system): 140KG
  • Max User Weight (double reeved system): 280KG
  • Weight: 15KG
  • Service Interval: 12 months

AB15RT - TORQ 15m Fall Arrest Recovery Device

TORQ 15m Fall Arrest Recovery Device is designed to provide fall protection from falls from height.

Anchored above the user, it gives the user a safe area of work.

The retracting line pays in and out of the device as the user moves. In the event of a fall, a brake engages, arresting the fall of the user with a controlled deceleration force.

The AB15RT has an integral winch mechanism, so in the event of a fall, the top man will be able to raise or lower the user to a safe area. Swivel anchor eye on top.

Can be mounted onto Abtech Tripods and Davit arms for access and egress from a confined space.

  • Product Code: AB15RT
  • Conformance: BS EN 360
  • Cable:15m x 5mm Galvanised Steel
  • Max Recommended User Weight:150KG
  • Weight; 10.40kg
  • Service Interval:12 months

30073 - Counterweight Base kit

Utilises readily available barbell type
weight plates.

The counterweight has independently adjustable legs for use on uneven ground.

Designed to be used with Davit Arms

360kg of Weights Required per user

Does NOT come with weights

  • Product Code: 30073-KIT
  • Conformance: Certified to EN795 CLASS B, EN360, EN1496
  • Base Weight: 60kg
  • Using Offset Masts 30104 0r 30105 For a 4:1 Safety Factor: 360kg of Weights Required per user
  • Overall Length: 2.08m
  • Overall Width: 1.5m


Specification

Category

Category
Tripods / Quadpods

Tripods / Quadpods

Tripods / Quadpods
Confined Space
Confined Space
Yes

General

Industrial or Sport Use
Industrial
Conformity
CE EN795 Class B , CE EN1496 , CE EN360 ,
Colour
Orange
