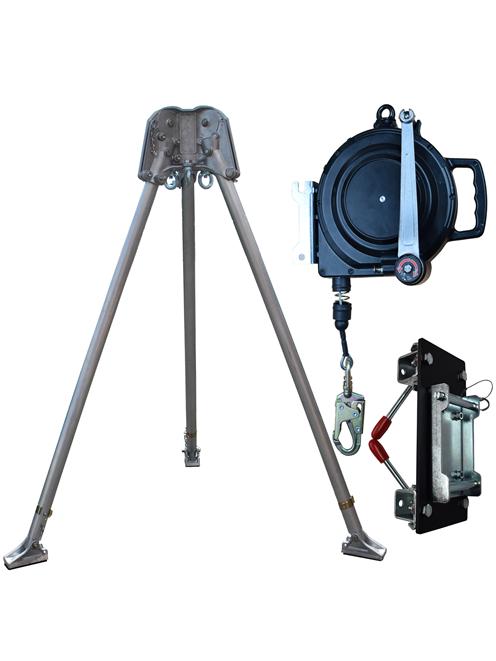

Abtech Confined Space Tripod Kit with 30m Fall Arrest Recovery Winch

This Confined Space Tripod Kit comprises of the following:-

  • T3 Tripod
  • 30m Fall Arrest Winch
  • Tripod Clamp

Full description


Abtech Confined Space Tripod Kit with 30m Fall Arrest Recovery Winch

T3 Tripod

The tripod is designed for confined space entry and rescue, this strong stable tripod manufactured from lightweight aluminium alloy is easy to set up and take down, the tripod legs may be individually adjusted for stability.  One worker can carry and erect the tripod.

The T3 Tripod has 6 anchor points tested to EN795. The 3 overhead pulleys hold up to 11mm rope. The extra anchor points may be used with pulleys for a double roped rescuer, back-up system, airlines, communication lines, medical kits, tools etc

  • Designed for 2 persons, SWL 250Kg 6:1 safety ratio
  • Conformity: Certified to EN795 Type B
  • Attachment Points: 3 Overhead Pulleys, 3 Fixed Eyebolts
  • Adjustable from 140cm - 240cm
  • Weight: 19.4kg

30m Fall Arrest Winch

The 30m Fall Arrest Winch is designed to provide fall protection from falls from height. Anchored above the user, it gives the user a safe area of work. The retracting line pays in and out of the device as the user moves. In the event of a fall, a brake engages, arresting the fall of the user with a controlled deceleration force. The AB30RT has an integral winch mechanism, so in the event of a fall, the top man will be able to raise or lower the user to a safe area. Swivel anchor eye on top. Can be mounted onto Abtech Tripods and Davit arms for access and egress from a confined space.

  • Conformity: EN 360  EN1496
  • Cable: Galvanised Steel
  • Max Recommended user weight: 140kg
  • Weight: 23kg
  • Length: 30m
  • Service Interval: 12 months
  • Lifespan: The maximum lifespan of the product is 10 years from the recorded first use. The type of use and the conditions will affect the lifespan of a product.

Tripod Bracket

Bracket for mounting the Abtech 30m Fall Arrest Winch to the Abtech Tripods.


Manufacturer's Downloads



Tripods / Quadpods

Tripods / Quadpods

Tripods / Quadpods
Tripods, Confined Space,
Confined Space


Industrial or Sport Use
CE EN795 Class B , CE EN1496 , CE EN360 ,
Weight (kg)
