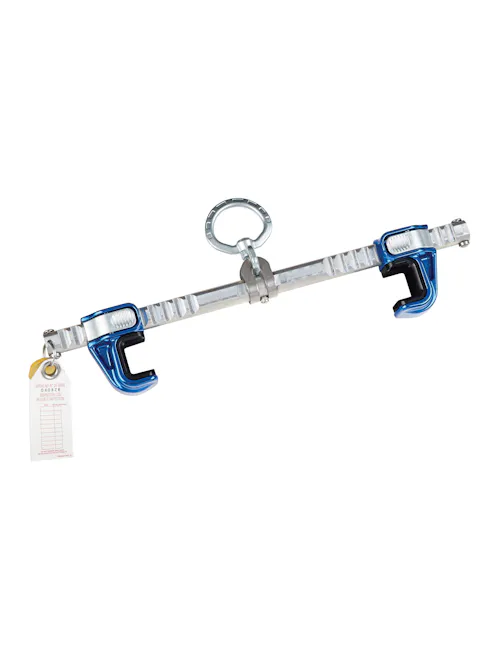

3M™ DBI-SALA® Sliding Beam Anchor
3M DBI-SALA Sliding Beam Anchor
The DBI-SALA Sliding beam anchor is an adjustable EN795 beam anchor, designed for fall arrest and suspension (such as rope access). Easy fitting to beams widths between 9cm and 35.5cm, up to 3.2cm flange thickness.
Fast Delivery
Deliveries
Coronavirus latest: We are still open for business! Please click here for our full statement on our operations.
We pride ourselves on our excellent service and aim to despatch all orders promptly. If you order before 3pm Monday to Friday we will try to send it out that day, for next working day delivery. Orders:
- placed after 3pm Monday to Thursday will be processed the next day
- placed after 3pm on a Friday or at a weekend or on a Bank Holiday will be processed on the next working day
- Orders to the Highlands, Islands and Out of Area may be a two-day delivery and overseas will be longer
Please call us for time-critical orders, so we can process the order as a matter of urgency and confirm the delivery schedule.
All goods are subject to availability. If we can't supply your goods within 30 days from the date of order, we will inform you immediately and let you know the expected delivery date.
Courier service
If you opt for a courier delivery, you will receive an email or text on the day we despatch your order, informing you that it is enroute. On the morning of delivery, at around 07:30, you will receive a further email or text giving you a 1-hour delivery time slot. Please therefore ensure that you have given us the correct mobile number and email address.
Couriers are extremely busy during Christmas and the sales, so please allow extra time.
We will not be held liable for any consequential loss caused by late or failed deliveries.
Timed deliveries / Saturday & Sunday deliveries
We can arrange timed deliveries for:
Weekdays:
- pre-10:30am
- pre-12 (midday)
Weekends:
- Saturday pre-10:30am
- Saturday pre-12 (midday)
- Sunday (anytime)
Some of the timed delivery options are available via the website, for others including a Sunday delivery, please call the office for a confirmed price and to arrange the alternate delivery.
Important Note:
Timed deliveries are subject to stock availability (we will contact you if any of your order is not in stock, so you can confirm if you would like us to split the delivery) and must be placed by 3pm Monday to Friday. Please call us if it's after 3pm as we may still be able to catch our couriers.
Description
3M DBI-SALA Sliding Beam Anchor
Mobility. It’s critical to getting the job done, just like your fall protection. With the new 3M DBI-SALA Sliding Beam Anchor, you can get the best of both worlds. Once you secure it to the beam using the redesigned adjustment buttons, simply connect your Self-Retracting Lifeline (SRL) or lanyard to the swivelling D-ring and you’re ready to work. The anchor point slides effortlessly behind you.
Hands-free mobility
360-degree swivelling D-ring optimizes your mobility on the beam.
Compliant
Tested and certified to EN 795-2012 Type B
Rugged durability
Corrosion-resistant construction.
Visible adjustability
Dual ratcheting adjustment buttons are accessible above the beam, while locking mechanism is located on the side to reduce accidental engagement
Lightweight
Compact size and lightweight materials.
Easy pad replacement
Snap-in design of wear pads allows them to be replaced quickly in the field
Area of applications
- Bridge Work
- Buildings
- Warehouses
- Arenas
- Parking Ramps
Technical Information
- Versatile size ranges to fit a variety of beams
- Replaceable wear pads
- 360-degree swivelling D-ring anchor point
- Integrated dual ratcheting system
- High-strength, lightweight steel and aluminium construction
- 22 kN (5000 lb) strength and user capacity of 140 kg
Manufacturer's Downloads
Specification
Beam Anchor
|
Minimum Flange Width
|
90mm
|
|---|---|
|
Maximum Flange Width
|
355mm
|
|
Maximum Flange Depth
|
32mm
|
|
Working Load Limit (kg)
|
140kg
|
|
Breaking Strength kN
|
22kN
|
General
|
Industrial or Sport Use
|
Industrial
|
|---|---|
|
Material
|
Aluminium, Stainless Steel,
|
|
Conformity
|
CE EN795 Class B
|
|
Weight (kg)
|
1.59kg
|
