Latchways TowerLatch Fall Protection Device

The Latchways ManSafe TowerLatch for tower fall protection solutions have the inherent flexibility to be configured for use on virtually any design of power transmission tower. The TowerLatch is often specified within the transmission industry and is used on bespoke systems installed on electricity pylons.

Full description

Description

Latchways TowerLatch Fall Protection Device

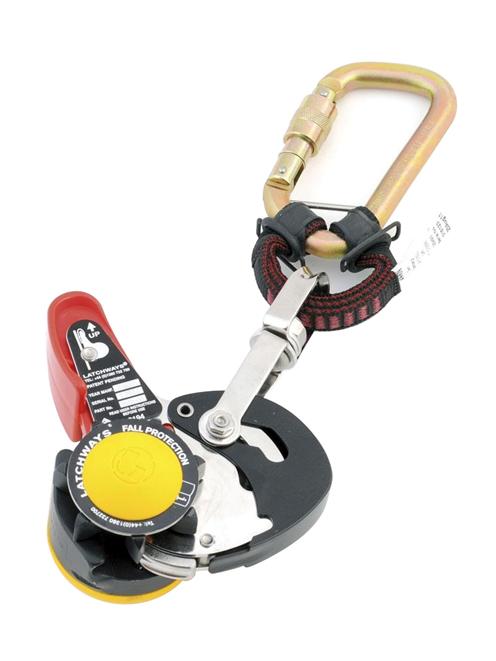

A key element of the system is the TowerLatch unit with its unique Latchways starwheel component. This provides workers with the security of being constantly attached to the system while also having both hands free to go about their duties. If a worker should fall from the system, the TowerLatch immediately locks onto the system cable and arrests the fall.

Key Features

  • Follows the contours of the tower structure.
  • Can be installed on all types of steel lattice structures, towers, masts and monopoles.
  • Suitable for retrofitting or as part of a new build.
  • The system is unobtrusive and lightweight.
  • Operation is not affected by snow, ice or adverse weather conditions.
  • Can be installed for use in virtually all environments.
  • Can be integrated into a comprehensive system incorporating inclined and horizontal sections.
  • Will support up to four workers on a single line.
  • The TowerLatch starwheel unit rotates freely through the intermediate cable guides to give the user continuous hands-free protection.
  • In the event of a fall, the TowerLatch unit locks onto the cable and arrests the fall.
  • The load generated in a fall is absorbed by the system’s top anchor bracket. This has a built in safety factor of 2.4 x the potential load.
  • A unique patented Latchways energy absorber built into the system ensures that the maximum load on the worker and end anchor in the event of a fall is minimised to 6 kN.
  • If a fall occurs from the system, a fluorescent red shaft extends from the energy absorber. This shaft is visible from ground level and by helicopter inspection.
  • The TowerLatch unit can be attached or detached at any point in the system.
  • ManSafe for Towers is easy to install and maintain.
  • Comprehensive range of specialist components to enable installation on a wide variety of towers.
  • Meets all appropriate international standards.

Inspection Requirements for Latchway Devices

  • Periodic examination of Latchways GTFA devices, in accordance with EN 365, shall be carried out at least annually from the date of first use, or the date of manufacture if the date of first use cannot be proven through auditable traceability.
  • Latchways GTFA devices can be recertified annually by a competent person in accordance with Latchways’ published instructions (please find attached our latest revision). Competent person examinations enable the product to be inspected using visual, tactile and non-specialist tools. If the device fails a competent persons examination it should be passed to a trained Technician or returned to Latchways for further examination and repair. A competent person cannot disassemble or repair assemblies.





Manufacturer's Downloads



Specification

Backup Device

Rope or Wire Usage
Wire - Guided Type Fall Arrester
with or without energy absorber
With Energy Absorber

General

Industrial or Sport Use
Industrial
