Cresto RPX Original Box Rescue and Evacuation Device
Cresto RPX Original Box Rescue and Evacuation Device
The Cresto RPX Original is the latest version of RED Pro with a refined and simplified lifting and locking function for rescue. This version is equipped with a built-in torque limiter in the hand wheel. Used to lift a person so that you can release any attenuator lines after a fall and then evacuate the distressed person to a safe surface.
During descent/evacuation, the centrifugal brake is automatically engaged and regulates to a constant descent speed for a simple and safe descent, from for example cranes, wind turbines, mobile work platforms, and industrial buildings. The downhill speed is up to 2m / s depending on the weight of the person (s).
Fast Delivery
Deliveries
Coronavirus latest: We are still open for business! Please click here for our full statement on our operations.
We pride ourselves on our excellent service and aim to despatch all orders promptly. If you order before 3pm Monday to Friday we will try to send it out that day, for next working day delivery. Orders:
- placed after 3pm Monday to Thursday will be processed the next day
- placed after 3pm on a Friday or at a weekend or on a Bank Holiday will be processed on the next working day
- Orders to the Highlands, Islands and Out of Area may be a two-day delivery and overseas will be longer
Please call us for time-critical orders, so we can process the order as a matter of urgency and confirm the delivery schedule.
All goods are subject to availability. If we can't supply your goods within 30 days from the date of order, we will inform you immediately and let you know the expected delivery date.
Courier service
If you opt for a courier delivery, you will receive an email or text on the day we despatch your order, informing you that it is enroute. On the morning of delivery, at around 07:30, you will receive a further email or text giving you a 1-hour delivery time slot. Please therefore ensure that you have given us the correct mobile number and email address.
Couriers are extremely busy during Christmas and the sales, so please allow extra time.
We will not be held liable for any consequential loss caused by late or failed deliveries.
Timed deliveries / Saturday & Sunday deliveries
We can arrange timed deliveries for:
Weekdays:
- pre-10:30am
- pre-12 (midday)
Weekends:
- Saturday pre-10:30am
- Saturday pre-12 (midday)
- Sunday (anytime)
Some of the timed delivery options are available via the website, for others including a Sunday delivery, please call the office for a confirmed price and to arrange the alternate delivery.
Important Note:
Timed deliveries are subject to stock availability (we will contact you if any of your order is not in stock, so you can confirm if you would like us to split the delivery) and must be placed by 3pm Monday to Friday. Please call us if it's after 3pm as we may still be able to catch our couriers.
Description
Cresto RPX Original Box Rescue and Evacuation Device

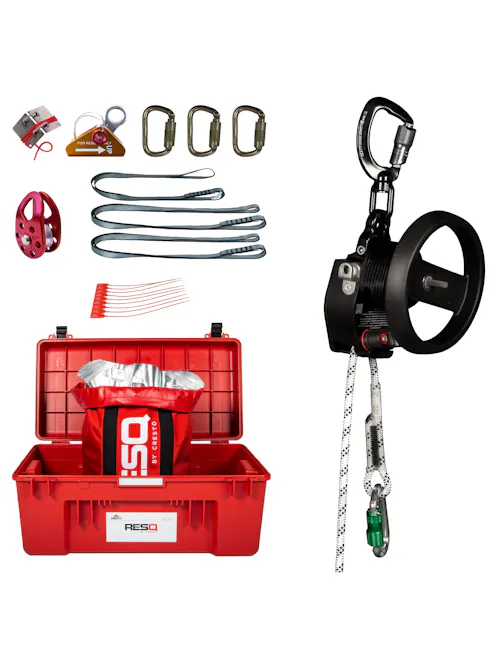

A complete height rescue kit supplied in a vacuum sealed pack, this kit includes:
1 x Controlled rate descender, with lift function.
1 x Edge protection.
1 x Rope grab.
3 x Steel double action karabiners.
1 x Swing cheek pulley.
3 x Slings.
1 x Vacuum sealed bag
1 x Protective hard case
Technical Information
| Material device: | Casted Aluminium |
| Function: | Automatic descent device |
| Mechanics: | Centrifugual break |
| Lifting mechanics: | Hand wheel with Torque limiter, Gear Ratio 1:10 |
| Rope: | Kernmantle rope 32-braided, 9,6 mm. Core and sheet of Polyamid |
| Rope Weight: | 61g/m |
| Attaching connector, device: | Steel Karabiner with double action gate <30kN, gate strength <16kN. |
| Product kit: | Device: 2,2kg |
| Kit: | Vacuum packed in bag 9450 and Storage box 9449 incl. Rescue Accessory Pac. |
| Standards: | EN341:2011 cl.A & B; EN1496:2017; ANSI Z359.4-2013; CSA-Z259.2.3-12. |
| Declaration of Conformity: | PPE Regulation 2016/425. |
| Lifespan rope: | 10 years lifespan maximum working life. |
| Max. load: | cl. A 100 kg, cl. B 200 kg. |
| Min. load: | 50kg. |
| Descent speed: | 0.5-2m/s. |
| Max. rope length: | 160m. |
| Max. descent distance: | 5x160m (200 kg). |
| Max. Hoist: | 136kg 12m. |
| Working temperatures: | -40-(+50)°C. |
| Inspection requirements: | Yearly inspection Vacuum. |
| Identification: | Serial Number. |
| RFID: | Yes. |
Manufacturer's Downloads
Specification
Rescue Kit
Rescue Kits | Rescue Kits |
|---|---|
Rope Length | 50m, 75m, 125m, 150m, |
Wind Farm Kit | Rescue Equipment |
General
Industrial or Sport Use | Industrial |
|---|
