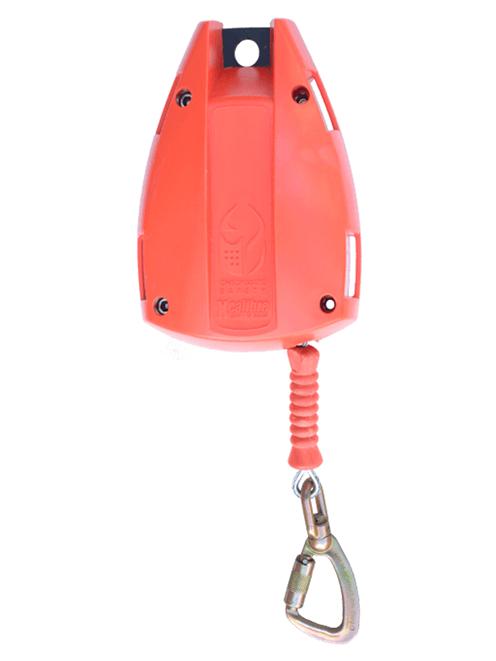

Checkmate FABX1/2LE - Leading Edge Rated Fall Arrest Blocks

Code:
From £477.66
RRP £561.96
Save £84.30
(inc. VAT)

Checkmate Leading Edge Rated Fall Arrest Blocks

The Checkmate FABX1LE (10m) & FABX2LE (15m) are manufactured with galvanised wire rope, these fall arrest blocks offer lightweight handling, excellent serviceability and exceptional performance with the addition of a leading edge rating of 0.5mm or above.

Full description

Description

Checkmate Leading Edge Rated Fall Arrest Blocks

The Checkmate fall arrest blocks are manufactured with galvanised wire rope and available in two lengths 10m and 15m


Key Features

  • Anchorage Connection: 2267Kg (5000lbs) gate rated steel swivel twist lock
  • Capacity: Galvanised Wire Rope - 10m & 15m.
  • Total Arrest distance: Max 2.0m
  • User Weight: 136kg (300lbs) when anchored above head height 100kg maximum (220lbs) when anchored over an edge


Construction

  • External Housings: PC/ABS High strength and rigidity UV stabilised
  • Drum: olyamide 6 Glass Filled
  • Chassis: Hot Rolled Steel, Zinc plated black
  • Pawl Plate & Ratchet: Al Alloy T6 Hard anodised
  • Pawls & Spindles: Stainless steel, hardened
  • Bearings: Polyamide with PTFE Polytetrafluoroethene
  • Shaft: Al. Alloy T6 Hard anodised
  • All Fixings: Stainless steel
  • Swivel Hook: Steel, rated to 40kN

  • Manufacturer's Downloads



    Specification

    Backup Device

    Length
    10m, 15m,

    General

    Industrial or Sport Use
    Industrial
    Conformity
    CE EN360
