Abtech 5" Barrel mount kit w/ davit

Abtech
Code: 30161KIT
£6,689.66
(inc. VAT)

30161KIT - 5” BARREL MOUNT KIT

5” Barrel Mount Kit c/w 30105, 30109, 60005, AB15RT and Brackets

Full description

Description

30161KIT - 5” BARREL MOUNT KIT

5” Barrel Mount Kit c/w 30105, 30109, 60005, AB15RT and Brackets.

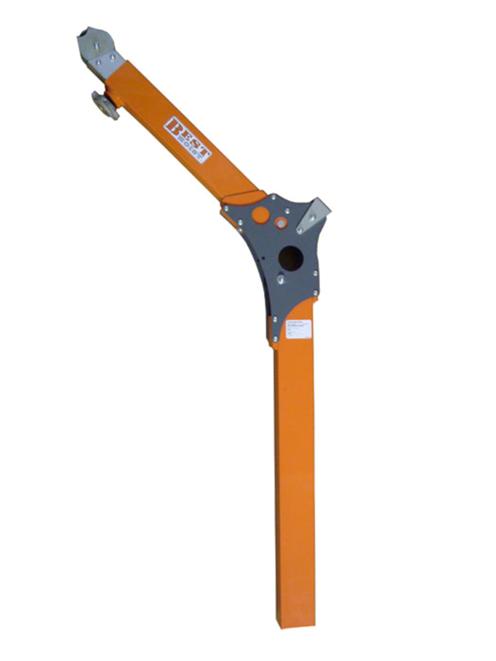

30105 - Large Upper Davit

Large Upper Davit, with an adjustable offest.

To be used with a Lower Davit and Base

  • Product Code: 30105
  • Conformance: Certified to EN795 CLASS B
  • Weight: 12kg
  • Reach: 28” (711mm)
  • Height: 66” (1676mm)

30109 - Large Lower Davit

To be used with an Upper Mast Davit and Base

  • Product Code: 30109
  • Conformance: Certified to EN795 CLASS B
  • Weight: 8kg
  • Height: 52” (1321mm)

60005 - 30m Man Riding Winch

30m Man Riding Winch designed for use in a wide variety of confined space, work positioning, rescue and fall protection applications.

The winch may also be used in various material handling applications within the prescribed working load limits.

  • Product Code: 60005
  • Conformance: BS EN 795, BS EN 1496
  • Mechanical Advantage: 11:1
  • Average Cranking Force: 30LBS (133N)
  • Secondary Brake Stopping Distance: Maximum of 24” (610mm)
  • Max User Weight (single reeved system): 140KG
  • Max User Weight (double reeved system): 280KG
  • Weight: 15KG
  • Service Interval: 12 months

AB15RT -

TORQ 15m Fall Arrest Recovery Device is designed to provide fall protection from falls from height.

Anchored above the user, it gives the user a safe area of work.

The retracting line pays in and out of the device as the user moves. In the event of a fall, a brake engages, arresting the fall of the user with a controlled deceleration force.

The AB15RT has an integral winch mechanism, so in the event of a fall, the top man will be able to raise or lower the user to a safe area. Swivel anchor eye on top.

Can be mounted onto Abtech Tripods and Davit arms for access and egress from a confined space.

  • Product Code: AB15RT
  • Conformance: BS EN 360
  • Cable:15m x 5mm Galvanised Steel
  • Max Recommended User Weight:150KG
  • Weight; 10.40kg
  • Service Interval:12 months

30161 - Barrel mount Bracket

Designed to be used with Davit Arms

To fit shoaring with a max width of 5”
(127mm).

  • Product Code: 30161
  • Conformance: BS EN 795 TYPE B
  • Weight: 21kg
  • Mild Steel with CS-500 finish


Specification

Category

Category
Tripods / Quadpods

Tripods / Quadpods

Tripods / Quadpods
Confined Space
Confined Space
Yes

General

Industrial or Sport Use
Industrial
Conformity
CE EN795 Class B , CE EN1496 , CE EN360 ,
Colour
Orange
