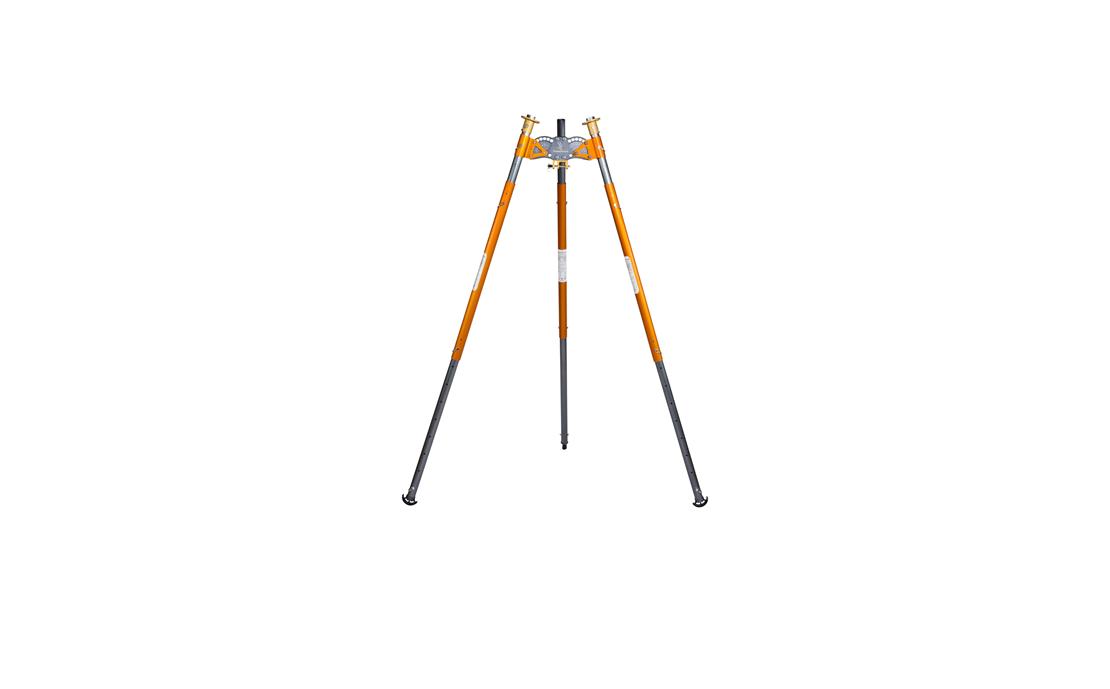

Harken TerrAdaptor Tripod system kit
The Harken TerrAdaptor is the ultimate artificial high directional system (AHD) designed specifically for Rescue Teams where the situation will have many unknowns for the terrain encountered, with a MBL of 36kN. In such emergency cases it is essential to have a quick assembly, easy to use frame that can be easily adapted to any environment. This saves time and also space on the rescue vehicles.
The unique head unit that offers lockable articulation of the legs angles makes deployment very stable and adjustable in Tripod and Bipod configurations, allowing deployment to accommodate variations in terrain/structure and to set the legs wide enough for a litter to pass through cleanly.
Storage and carrying Bags
Full system is packed into 3 bags that are easy to stow in a vehicle. 2 bags contain the legs and hobbles, the main bag contains the head unit and the quick release clips, feet and other attachments, with removable zip up pouches. All bags have carry handles and full shoulder straps to be easily carried to site.
Head
The head is where the innovation starts. The two front legs are fully adjustable with a central pivot and 2 quick release pins on either bracket allowing the legs to articulate through 90 degrees. The front leg brackets can be offset to allow the legs to be oriented horizontally and side-by-side, to span above a void, such as an elevator rescue, where the legs could be braced between walls.
The rear leg also attaches through a similar bracket with the same full adjustment and this puts the leg at 90 degrees to the front leg line.
The rear leg can also articulate through 90 degrees, so the best angle can be found and the leg locked to provide the best footprint and stability when assembled.
The head includes 36kN rated attachment points on each grey plate and the gold central bracket has an attachment point with a quick release pin which also links up directly with the Space Station accessory, for an expanded collection of mounting points for blocks and pulleys.
Legs
The legs are in 3 sections – Grey inner and Orange outer sections join the greys, the grey parts fit into orange parts throughout the product for ease of assembly. The legs can be adjusted through the head brackets and via the connecting orange tubes, to give a massive range of configurations and heights up to the full 2.6m clearance. The legs are marked up with stamped indicators to make balancing very quick and easy.
Secondary anchor points
Lash rings can be fitted during assembly and Quick Lash anchor points can be fitted later, both to the grey leg tubes.
Feet
The TerrAdaptor has modular adaptors that fit into the grey and orange tubes depending on setup, the different feet options are interchangeable into the modular adaptor. The kit comes with the Rocker feet as standard; these are a rounded foot that work well on most surfaces and higher lean angles.
Other foot options are available depending on below
- Talon
- Articulating feet
These have a fully rotating movement to allow mounting on uneven surfaces and give a wide footprint for softer surfaces. They have a non-slip rubber pad, rigging points and holes for the foot to be secured to the floor via screws, bolts etc.
The basic format for the tripod is to have the two front legs tied together as the load bearing frame and the rear leg is suitably attached to give the required stability. When assembled, the feet must be hobbled together by a double prusik adjusted rope system, attached by maillons, this is critical to stabilize the structure and visually shows the working footprint for management of the resultant load. The larger the footprint is made, the more scope there is to allow for variations in load paths and more stable the structure can become. AHD’s are technical products requiring a high level of product and rigging knowledge.
Space Station
The Space Station is a multi-point rigging solution, designed to fit the head unit anchor point for an articulated rigging option, using a quick-pin, as well as to the TerrAdaptor legs, as a single unit or split into 2 parts, this is especially useful in a mono-pod configuration.
LokHead Winch
The LokHead winch takes its pedigree from the high efficiency sailing winches renowned as leaders across the Globe, offering rescue and descent certification to EN1496, EN341 for 240kg and EN13157 to 500kg for goods/equipment. It has 2 gear settings offering 15:1 and 40:1 ratios for lifting with a variable setup for 10-12.7mm diameter rope. The winch features a locking head that keeps the rope captive and includes a friction controlled lowering mechanism, the whole unit defaults to lock for safety..
The unit can be manually winched or a standard heavy duty power tool can attached to make the lift effortless.
It comes as standard with a universal mounting bracket to secure to the TerrAdptor and most other tripod systems.
Winch Bracket
The bracket is part of the LokHead winch kit and easily attaches around either the grey or orange sleeve. The bracket allows a quick install of the LokHead winch for either left hand or right hand use, this should be backed up with a sling/strop to an anchor point.
TelluMount - Ground Stand
This lightweight accessory has multiple rigging points rated to 24kN, offering a stable mounting option for the winch away from deviations such as the TerrAdaptor. It can be safely and securely attached to the ground, vehicles, trees etc… and allows a simple install of the LokHead winch for load/casualty lifting. It is especially effective when deployed within a twin tension line system with progress capture devices such as the CMC Clutch by Harken.
Wingman
A compact high-efficiency 4:1 pulley system to allow quick and easy adjustment, with an instant grab mechanism complete with instant grab lowering control, that can be operated and tailed with 1 hand. Users find the efficiency and 1-handed operation makes positioning a loaded basket stretcher very easy to change orientation, it can also be used to tension various rigging and AHD systems. With a 3m length and 15m rope, it suits most uses and comes packaged in a practical bag that can be attached to the litter.
This allows casualty recovery from a vertical access and simple adjustment to haul into the safe recovery section under the TerrAdaptor.
TerrAdaptor
TerrAdaptor Symmetric Tripod
Symmetric Tripods are typically used for straight vertical access such as above manholes or access hatches. When straddling a manhole or access hatch, a symmetric tripod's feet are equal distance from the centre of the manhole or hatch. All three legs are equally loaded. This is most often the strongest tripod configuration.
TerrAdaptor Quadpod Attachment
Symmetric Tripods and Quadpods are typically used for straight vertical access such as above manholes or access hatches. When straddling a manhole or access hatch, a symmetric tripod's feet are equal distance from the centre of the manhole or hatch.
TerrAdaptor Space Station
The all-new Space Station adds even more capability to the TerrAdaptor, the world's most versatile industrial tripod from PMI.
TerrAdaptor Space Station
The TerrAdaptor QuickLash has been designed to work exclusively on the TerrAdaptor grey tube as an anchor point.
TerrAdaptor Modular Adaptor
The new Modular Adaptor provides a secure platform for various new foot options. Tools to replace/interchange the feet are provided with the adaptor.
TerrAdaptor Talon Foot
The new Talon Foot accessory for the TerrAdaptor Tripod System includes two spikes which allow the feet to be perched on edges of walls and catwalks, or they may also be lashed securely to pipes, beams, and rails. The steel tips of the foot may be sharpened or replaced.
TerrAdaptor Articulating Foot
The new Articulating Foot swivels on a stainless steel ball. For extreme wide leg angles, the foot can rotate 90 degrees to the flat position.
TerrAdaptor Rocker Foot
The new TerrAdaptor Rocker Foot is the next generation of the Ball Foot – it provides more surface area on the ground than the previous Ball Foot.
TerrAdaptor Capstan Winch System
The TerrAdaptor Capstan Winch System comes fully assembled with the Harken 40.2 ST two speed winch, including the Harken 10 inch lock-in aluminium speed grip handle.
TerrAdaptor Steel Sheave Assembly
The TerrAdaptor Cable Sheave Assembly is specifically designed for use with the TerrAdaptor Portable Anchor System and the TerrAdaptor Cable Winch Bracket that allows you to utilize many of the commonly used cable winch systems.
TerrAdaptor Winch Bracket
The new Standard Winch Bracket is pre-tapped for mounting most Tractel and DBI/Sala cable work winches.
TerrAdaptor Symmetric Tripod
The Gin Pole or Monopod is the TerrAdaptor’s lightest high anchor configuration. A properly rigged gin pole/monopod can support several thousand pounds while remaining a lightweight, single leg assembly. The Gin Pole is also ideal for close quarters where there is not enough room for multi-leg configurations.
Harken LokHead Winch
The Harken LokHead winch is a self-tailing man riding capstan winch, with the security and safety of a captive head.
Harken Tellumount Ground Stand for the Lokhead Winch Kit
The TelluMount used in conjunction with the LokHead winch, offers a number of rigging solutions and has been designed for those working in rescue, lifting, and confined space operations.
